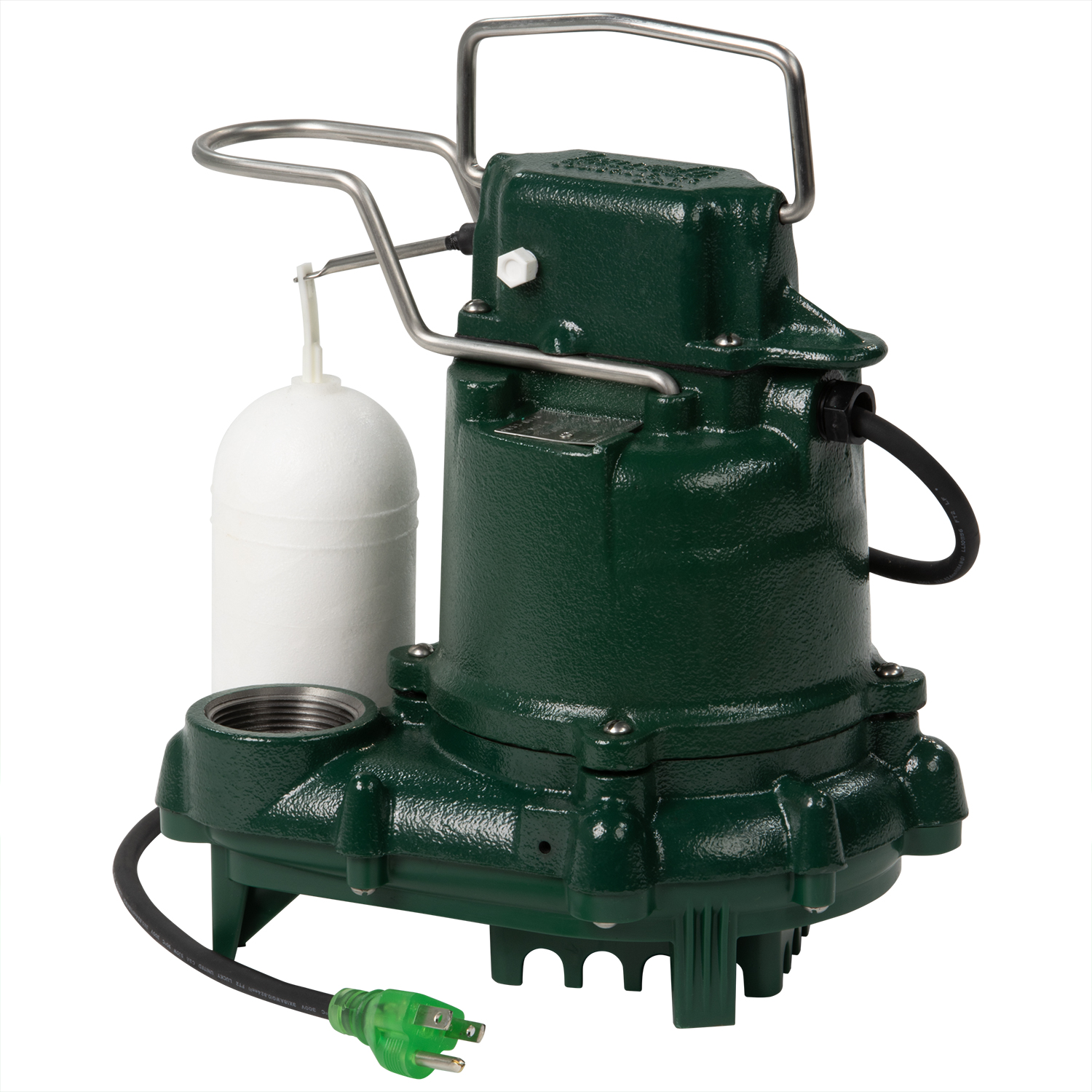

Zoeller® 53-0001 Mighty-Mate M53 Automatic Effluent/Dewatering Submersible Pump, 43 gpm Flow Rate, 1-1/2 in Outlet, 1 ph, 3/10 hp, Cast Iron
Part #: ZOM53
MFG #: 53-0001
The Mighty-Mate series of submersible pumps is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. Cast iron models include a epoxy powder coated finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller® pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance. This attention to detail is an inherent feature of every pump in this series, making it one of the most reliable in the industry.
Brand : Zoeller®
Amperage Rating : 9.7 A
Bearing Type : Sleeve
Cord Type : 3-Wire
Country of Origin : US
Dimensions : 10.0625 in H x 10.06 in W
Features
- Corrosion-resistant, powder coated epoxy finish
- No sheet metal parts to rust or corrode
- Stainless steel screws, switch arm, guard and handle
- No screens to clog, watertight, neoprene square ring between motor and pump housing
- Solid, buoyant, polypropylene float, oil filled, hermetically sealed, automatic reset thermal overload protected motor
- Upper and lower sleeve bearings running in bath of oil, Entire unit pressure-tested after assembly, carbon and ceramic shaft seal
- Watertight and dust tight, permanently oiled bearings
- Cast iron switch case, motor and pump housing, engineered thermoplastic base, glass filled, plastic impeller with metal insert
- Entire unit pressure-tested after assembly
- Class B insulation, 7-1/4 in/3 in auto On/Off points
- 1/2 in spherical solid handling, 9 ft cord, oil filled cooling
- Cast iron cap, motor and pump housing, base, carbon and ceramic mechanical seals, engineered plastic impeller, stainless steel hardware, neoprene gasket
- AISI 1215 cold roll steel motor shaft
- Single phase, shaded pole, 3 wire cord and plug
- 1-1/2 in NPT discharge
Application
- Dewatering (Sump)
- Enhanced Flow Step Systems
- Low Pressure Pipe (LPP) and Septic Tank
Standards/Approvals/Certifications
- CSA/US Certified
- SSPMA Certified
- UL Listed
