Woodford®

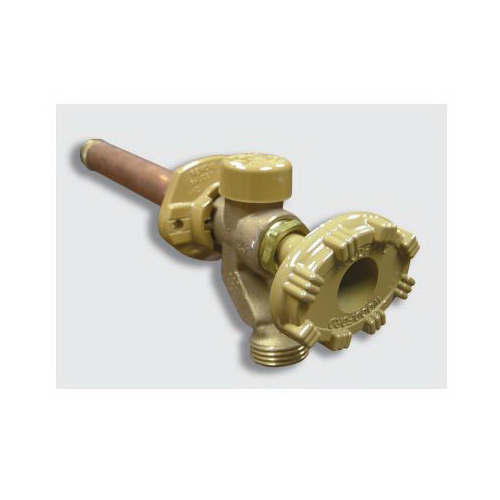

Woodford® 19CP-12 Anti-Siphon Freezeless Wall Faucet, 1/2 in, MNPT x Female C, 12 in THK Wall, 125 psi, Domestic

WOOD19CP12 MFG #: 19CP-12
Woodford® 19CP-12 Anti-Siphon Freezeless Wall Faucet, 1/2 in, MNPT x Female C, 12 in THK Wall, 125 psi, Domestic
  • Country of Origin: US
  • Dimensions: 15/16 in Dia Inlet
  • Domestic/Import: Domestic
  • End Style: MNPT x Female C
  • Handle Type: Oval
  • Manufacturer Name: Woodford Manufacturing
  • Nominal Size: 1/2 in
  • Pressure Rating: 125 psi
  • Type: Anti-Siphon Freezeless
  • Wall Thickness: 12 in
The freezeless Model 19 is intended for irrigation purposes and designed for year-round residential regardless of outside temperature. This product contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker.
  • Features and More

Features

  • This unit offers anti-siphon and non-rupture protection
  • Not intended for continuous use
  • Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on
  • 3/4 in male hose thread nozzle
  • Stainless steel seat - eliminates wire draw
  • EPDM packing to prevent leaking
  • Full circle operating threads on valve body and retainer
  • No lead solder joints
  • Standard o-size washer valve seat
  • Oval, powder-coated, die-cast aluminum handle
  • Adjustable polycarbonate wall flange
  • Model 19
  • https://youtu.be/-lwDUumgTuE

Application

  • For irrigation purposes

Standards/Approvals/Certifications

  • ASSE 1019
  • CSA Certified
  • cUPC Certified
  • UPC Certified

Warranty

  • 5 Years
