Woodford®

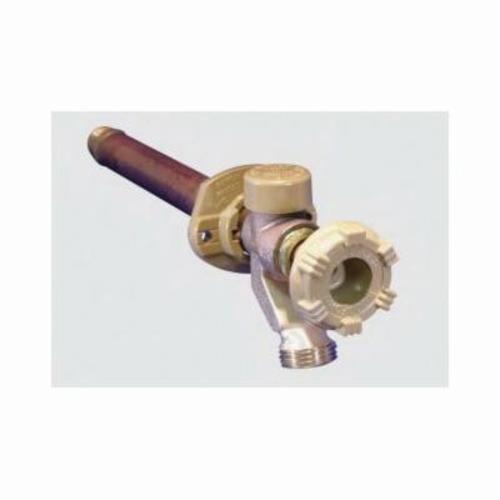

Woodford® 17CP-12-MH 17 Series Anti-Siphon Freezeless Wall Faucet, 1/2 in, MNPT x Female C, 10 in THK Wall, 125 psi, Domestic

WOOD17CP12MH MFG #: 17CP12MHBULK
Woodford® 17CP-12-MH 17 Series Anti-Siphon Freezeless Wall Faucet, 1/2 in, MNPT x Female C, 10 in THK Wall, 125 psi, Domestic
  • Country of Origin: US
  • Dimensions: 15/16 in Dia Inlet
  • Domestic/Import: Domestic
  • End Style: MNPT x Female C
  • Handle Type: Wheel
  • Manufacturer Name: Woodford Manufacturing
  • Nominal Size: 1/2 in
  • Pressure Rating: 125 psi
  • Series: 17 Series
  • Type: Anti-Siphon Freezeless
  • Wall Thickness: 10 in, 12 in
The freezeless Model 17 is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The Model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require and add-on vacuum breaker.
  • Features and More

Features

  • This unit offers anti-siphon protection
  • 3/4 in male hose thread nozzle
  • Stainless steel seat - eliminates wire draw
  • EPDM packing to prevent leaking
  • Full circle operating threads on valve body and retainer
  • No lead solder
  • Standard "O" size seat washer
  • Powder-coated, die cast aluminum handle
  • Adjustable polycarbonate wall flange

Application

  • For year-round residential and irrigation purposes

Standards/Approvals/Certifications

  • ASSE 1019 Type C Listed
  • CSA Certified
  • cUPC Listed
