WATTS®

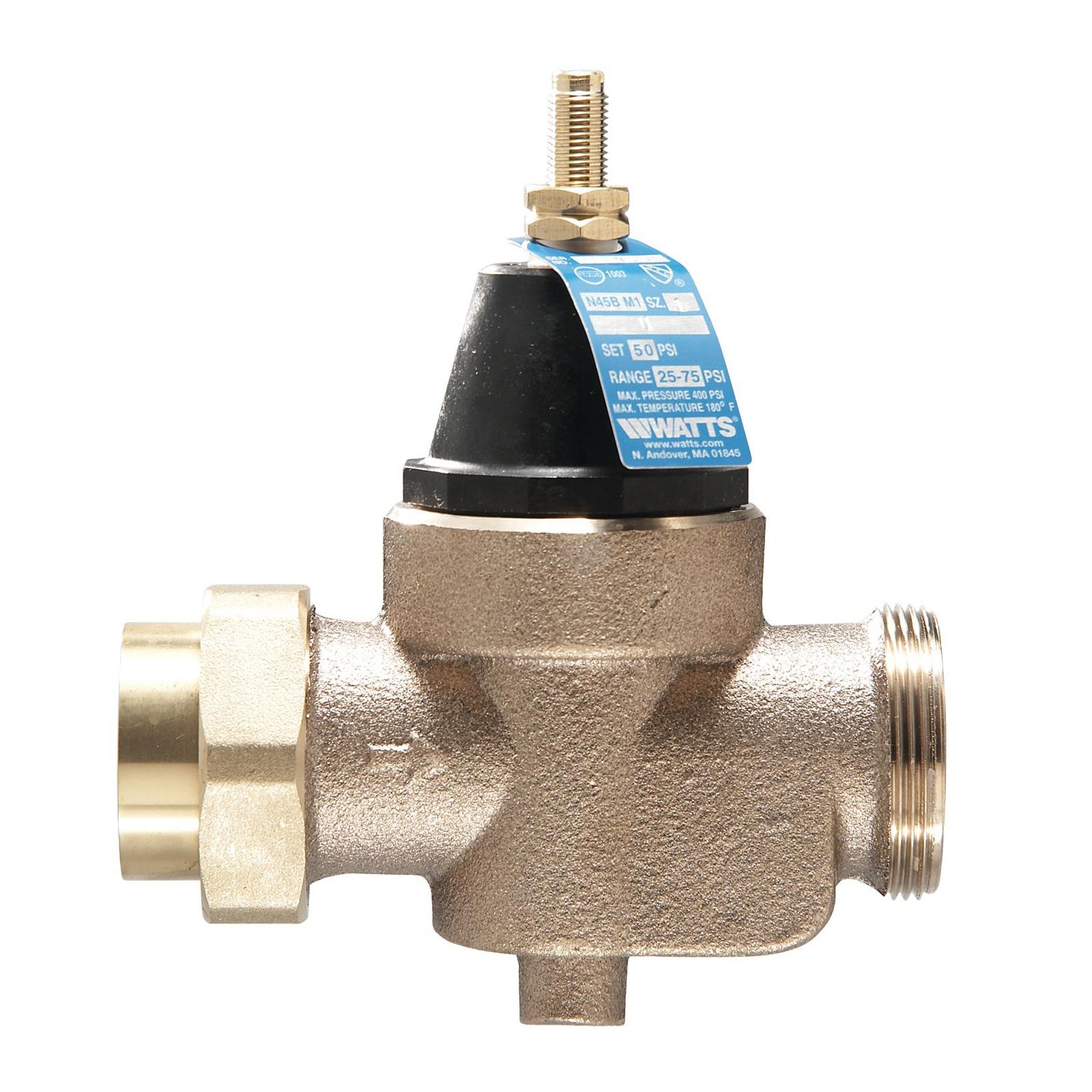

WATTS® 0009478 LFN45B Pressure Reducing Valve, 3/4 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic

WALFN45BM1UI MFG #: 0009478
WATTS® 0009478 LFN45B Pressure Reducing Valve, 3/4 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic
  • Country of Origin: US
  • Domestic/Import: Domestic
  • End Style: FNPT
  • Inlet to Outlet Length: 3-7/16 in
  • Manufacturer Name: Watts Water Technologies
  • Media: Water
  • Nominal Size: 3/4 in
  • Pressure Range: 25 to 75 psi
  • Series: LFN45B, LFN45BM1-U
  • Softgoods Material: Thermoplastic Seat/Reinforced EPDM Diaphragm
  • Top to Inlet Center: 4-9/16 in
Series LFN45B Lead Free Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free cast copper silicon alloy body construction, stainless steel integral strainer, thermoplastic seat and cage, thermal expansion bypass, and sealed spring cage for waterworks pit installations. The LFN45B Series is available in a variety of end connections including: threaded, solder, PEX, quick-connect and CPVC with both union and double union connections.
  • Features and More

Features

  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • Sealed spring cage on all models for accessible outdoor or pit installations
  • Integral stainless steel strainer removable for cleaning

Application

  • Commercial and Residential

Standards/Approvals/Certifications

  • ANSI A112.26.2
  • ASSE Standard 1003
  • City of Los Angeles
  • CSA Standard B356
  • IAPMO Listed
  • NSF to ANSI/NSF Standard 61 Annex G Certified
  • PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Warranty

  • 1 year Limited
