WATTS®

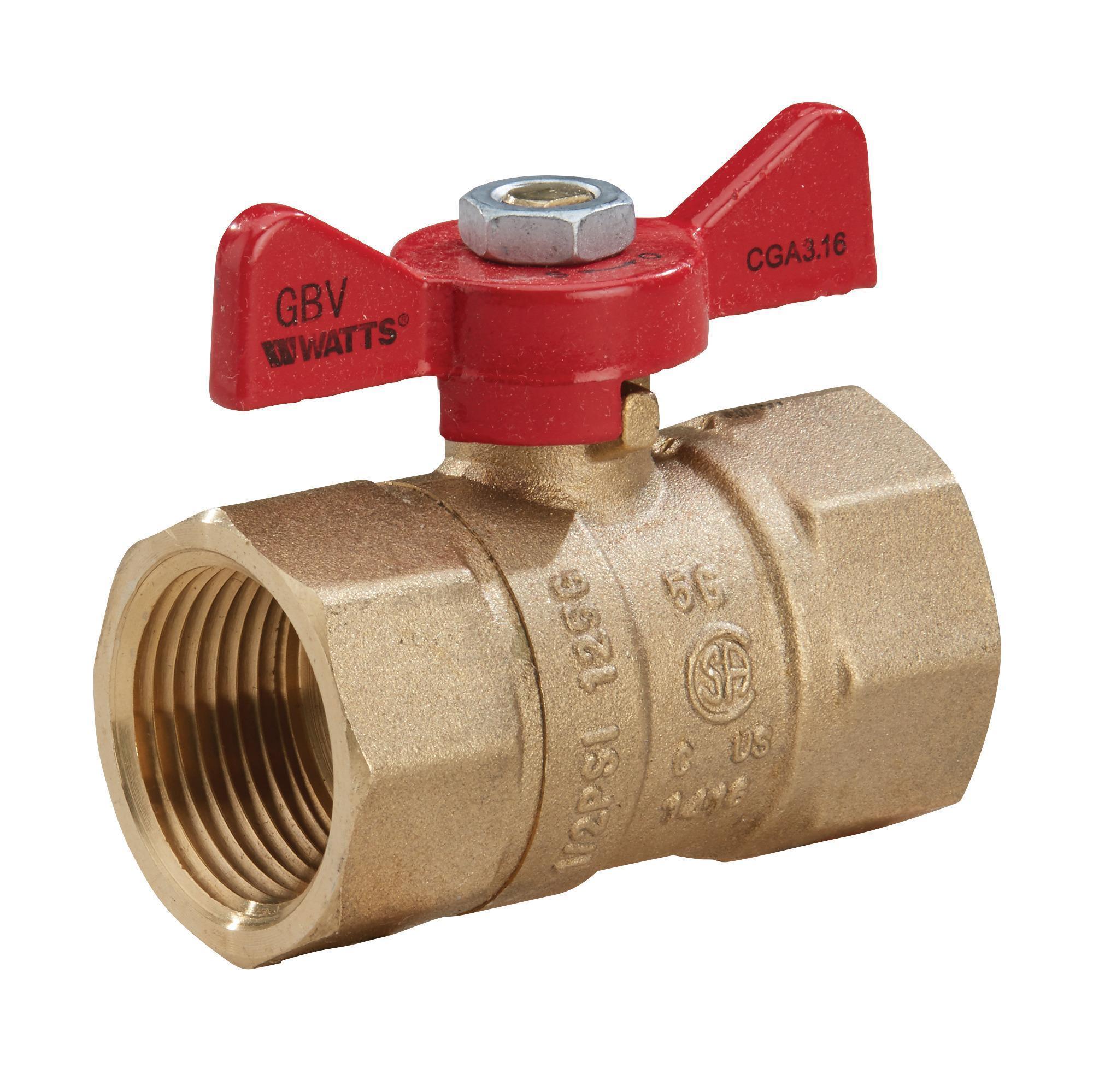

WATTS® 0545007 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Brass Body, PTFE Softgoods, Import

WAGBVK MFG #: 0545007
WATTS® 0545007 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Brass Body, PTFE Softgoods, Import
  • Actuator Type: T-Handle
  • Body Material: Brass
  • Country of Origin: CN
  • Domestic/Import: Import
  • End Style: FNPT
  • Flow Rate: 1200 cfh
  • Inlet to Outlet Length: 2-7/8 in
  • Manufacturer Name: Watts Water Technologies
  • Media: Gas
  • Nominal Size: 1 in
  • Pressure Rating: 5 psi
  • Series: GBV
  • Softgoods Material: PTFE
  • Top to Inlet Center: 1-9/16 in
  • Trim Material: Brass Stem and PTFE Seat
  • Type: 2-Piece
Series GBV 2-Piece Brass Gas Ball Valves are used in residential applications for manufactured natural gas and LP gas on in-house and indoor piping systems. It features a brass ball and stem, PTFE seats and packing, brass end piece and plug, and zinc alloy handle. Series GBV complies with ANSI standards for gas piping and is UL, CSA, and MEA approved. Available with female NPT end connections or female NPT x Flare end connections with either square or tee handle.
  • Features and More

Features

  • NPT female connections and T- handle
  • PTFE gland packing

Application

  • Commercial and Residential Applications

Standards/Approvals/Certifications

  • ANSI
  • C3600 ASTM B16 Plug
  • C36000 ASTM B16 Stem/Stem Gland Screw/Gland
  • C37700 ASTM B124 Body/Ball/End Piece
  • cCSAus Certified
  • MEA Approved
  • UL Listed and Z21.15 IAS Tested

Warranty

  • 1 year Limited
