WATTS®

WATTS® FD-102-A5 Floor Drain, 2 in Outlet, No-Hub Connection, 13/16 x 3-1/4 in Nickel Bronze Grid, Cast Iron Drain, Import

WAFD10A5N MFG #: FD-102-A5
WATTS® FD-102-A5 Floor Drain, 2 in Outlet, No-Hub Connection, 13/16 x 3-1/4 in Nickel Bronze Grid, Cast Iron Drain, Import
  • Connection Type: No-Hub
  • Country of Origin: CN
  • Dimensions: 8-1/8 in L
  • Domestic/Import: Import
  • Drain Material: Cast Iron
  • Grid Material: Nickel Bronze
  • Grid Size: 13/16 x 3-1/4 in
  • Manufacturer Name: Watts Water Technologies
  • Outlet Size: 2 in
  • Series: FD-100-A

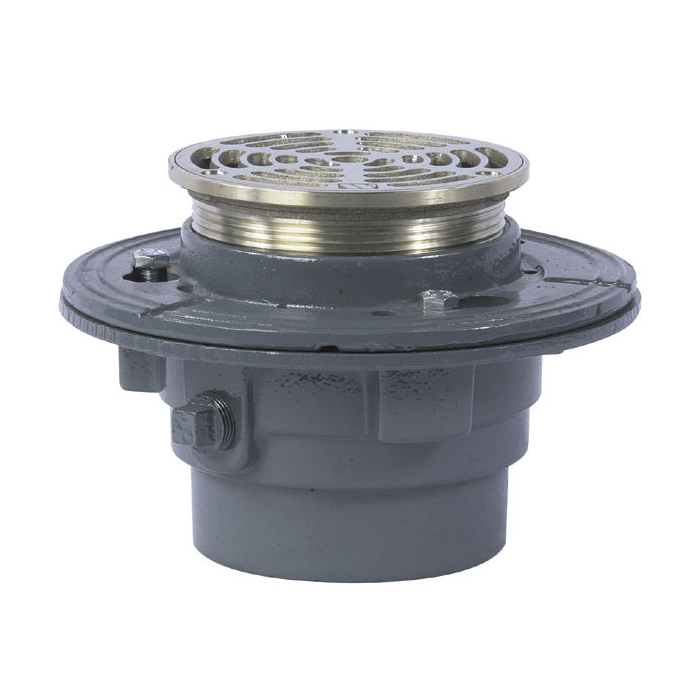

This epoxy-coated, cast iron floor drain is designed for finished floor areas. It features a 5 in round, adjustable, heel-proof, nickel bronze strainer, reversible clamping collar with primary and secondary weep holes, anchor flange and 2 in no hub connection. This item carries a medium duty load rating and can be purchased as BAA compliant. Sediment Bucket, vandal proof, trap primer tapping, backwater valve, hinged grate, galvanized body, strainer extension and various funnel options are also available.
  • Features and More

Features

  • Medium duty load rating
  • 8 sq-in free area

Includes

  • Anchor Flange
  • Reversible Clamping Collar with Primary and Secondary Weep holes
  • 5 in Dia Adjustable Round Heel Proof Nickel Bronze Strainer and No Hub (Standard) Outlet

Standards/Approvals/Certifications

  • ASME A112.21.1M
  • ASSE Listed
  • BAA Compliant
  • cCSAus Certified
  • FM Approved
  • NSF Approved
  • UL Listed
  • ULC
  • USC Certified
  • Water Quality® Association
  • PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Warranty

  • Limited
