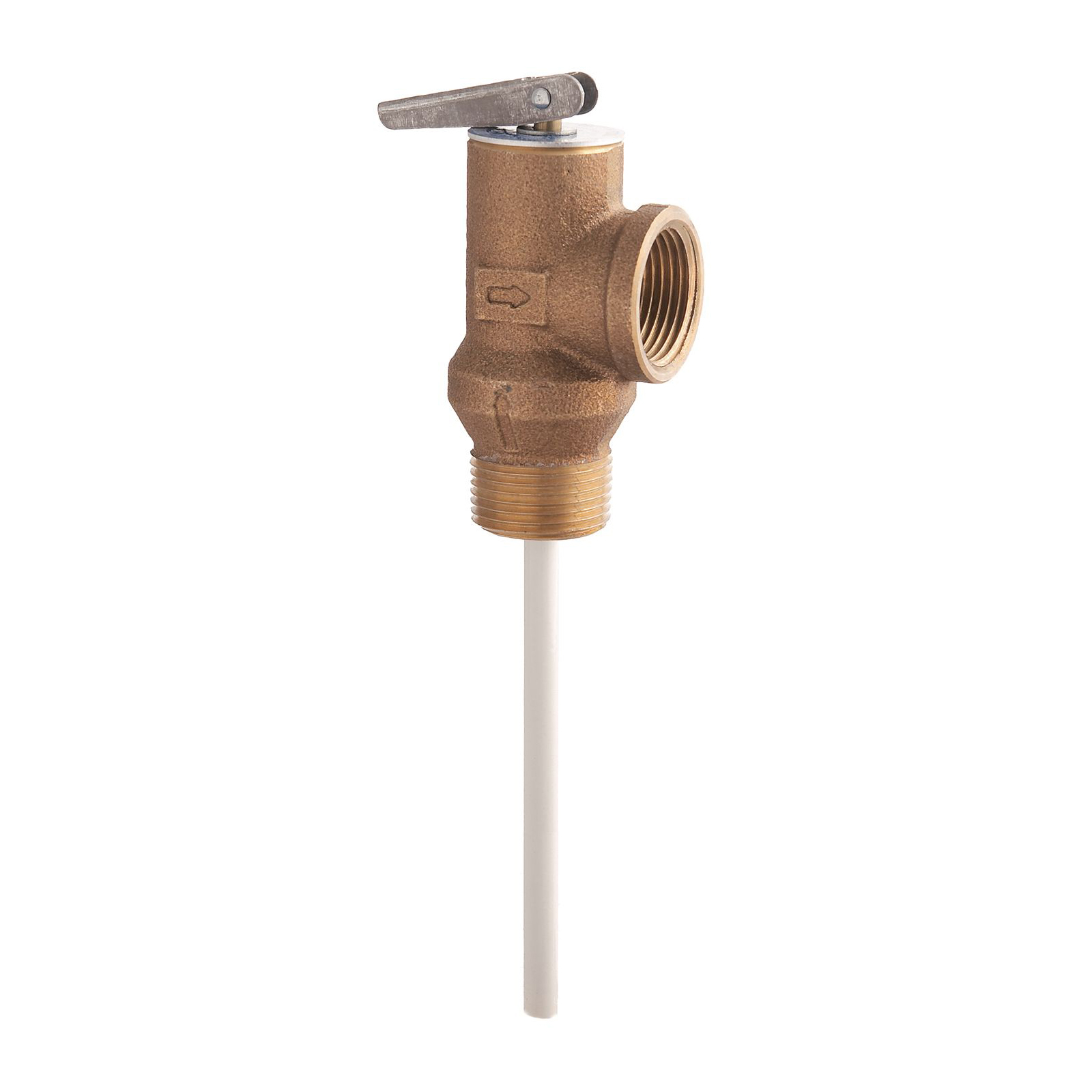

WATTS® 0066100 100XL Self-Closing Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, Brass Body, Domestic
Part #: WA100XL
MFG #: 100XL-4
Series 100XL Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model 100XL-8 is also available with 8 in. (200mm) extension thermostat. Series 100XL is ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
Brand : WATTS®
Actuator Type : Test Lever
Body Material : Brass
Country of Origin : US
Domestic/Import : Domestic
End Style : MNPT x FNPT
Features
- This device is designed for emergency safety relief and shall not be used as an operating control
- Used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr
- Maximum system operating pressure must not exceed 75% of valve set pressure
- Inquire with governing authorities for local installation requirements
- Thermostat is accurate and proven exclusively designed and manufactured by WATTS
- Required safety device on all water heaters
- Prevents water heater from blowing up
- Features a unique thermostat with special thermo-bonded coating
Application
- Water Heater and Hot Water Storage Tank
Standards/Approvals/Certifications
- ASME Specified
- CSA Certified
- PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Warranty
- Limited
