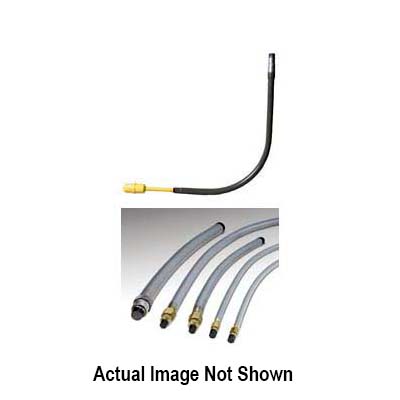

Gastite® FlashShield™ RISER-16-30-IPS Pipe Riser With Con-Stab Coupling, 1 in Nominal, IPS x NPT End Style, Polyethylene, Domestic

TFRISER1630IPS MFG #: RISER-16-30-IPS

Country of Origin: US
Domestic/Import: Domestic
End Style: IPS x NPT
Fitting/Connector Type: Pipe Riser
Manufacturer Name: Titeflex
Material: Polyethylene
Nominal Size: 1 in

Unlike above-grade gas piping installations that require metallic piping, underground systems need to perform in harsh and corrosive environments. Metallic pipe installed underground requires additional and costly materials to protect the pipe. Polyethylene gas piping systems are specifically engineered and certified for the underground environment. To provide a true underground gas piping solution, Gastite® has partnered with Continental Industries, Inc. to bring you Con-Stab I.D. Seal®, fittings, anode-less risers and polyethylene tubing (PE). These components assemble in minutes to form a complete underground gas piping system, which offers the flexibility and simple fitting assembly you have come to expect from Gastite®.

Catalog()

Features and More

Features

Cost effective joining method
Simple assembly
No additional assembly equipment required for installation just chamfer and push
Expanded product line with various configurations and material options
Uni-body design eliminating all external parts
Designed, tested and certified for direct burial
Eliminates corrosive threats associated with metallic piping
Lowest installed cost compared to other underground gas piping materials
Continuous lengths of flexible piping
Risers are used to transition from below ground polyethylene pipe to above ground metallic pipe, these risers are used for both natural gas and propane gas distribution

Application

Underground Natural Gas or Propane Piping

Standards/Approvals/Certifications

ASTM D-2513
Category 1
ASME D-B31.8-1995
CAN/CSA-B137.4
IAPMO/ISO 4437 Certified
NFPA-58 and NFPA-54
US DOT Part 192.283
UPC Listed
