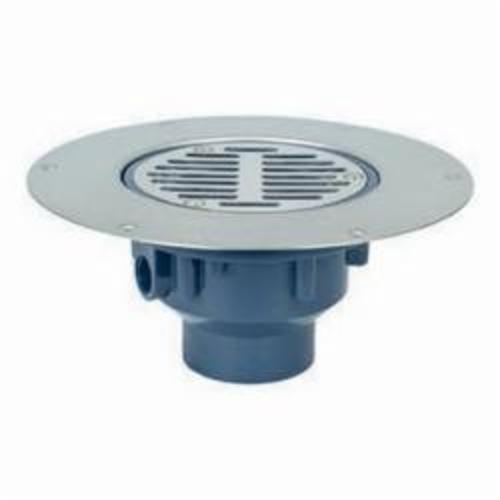

Sioux Chief Halo™ 822-2PS Adjustable Floor Drain With Round Ring and Strainer, 2 in Outlet, Hub Connection, PVC Drain, Domestic

SIOUX8222PS MFG #: 822-2PS

Connection Type: Hub
Country of Origin: CN, US
Dimensions: 9-1/2 in Dia
Domestic/Import: Domestic
Manufacturer Name: Sioux Chief
Outlet Size: 2 in
Series: 822
Type: Adjustable

Sioux Chief 822 series adjustable floor drain shall be used where necessary in drainage systems. Floor drain shall have an 18 gauge stainless steel deck/mounting flange and ABS/PVC body with SCH 40 hub connection. Floor drain shall allow adjustment of 3/4" above the deck flange. Strainer shall be heel-proof and meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2 in FIP for optional connection. Designed in accordance with ASME A112.6.3-2001.

Features and More

Features

Outlet welds over 2 in and inside 3 in, or over 3 in and inside 4 in
Head adjusts up to 3/4 in above flush to accommodate most flooring types
Installs easily in cored concrete floors or corrugated decks
Great for loft remodels, second floor utility rooms/laundry rooms, etc
SCH 40 hub
500 lb light duty, pedestrian traffic heel-proof strainer load
5.75 sq-in strainer free area
18 ga stainless steel round ring and strainer
With deck flange
Stainless steel round ring and strainer
https://www.youtube.com/watch?v=TE5KrlnFwhM

Standards/Approvals/Certifications

ASME A112.6.3-2001
