Sharkbite®

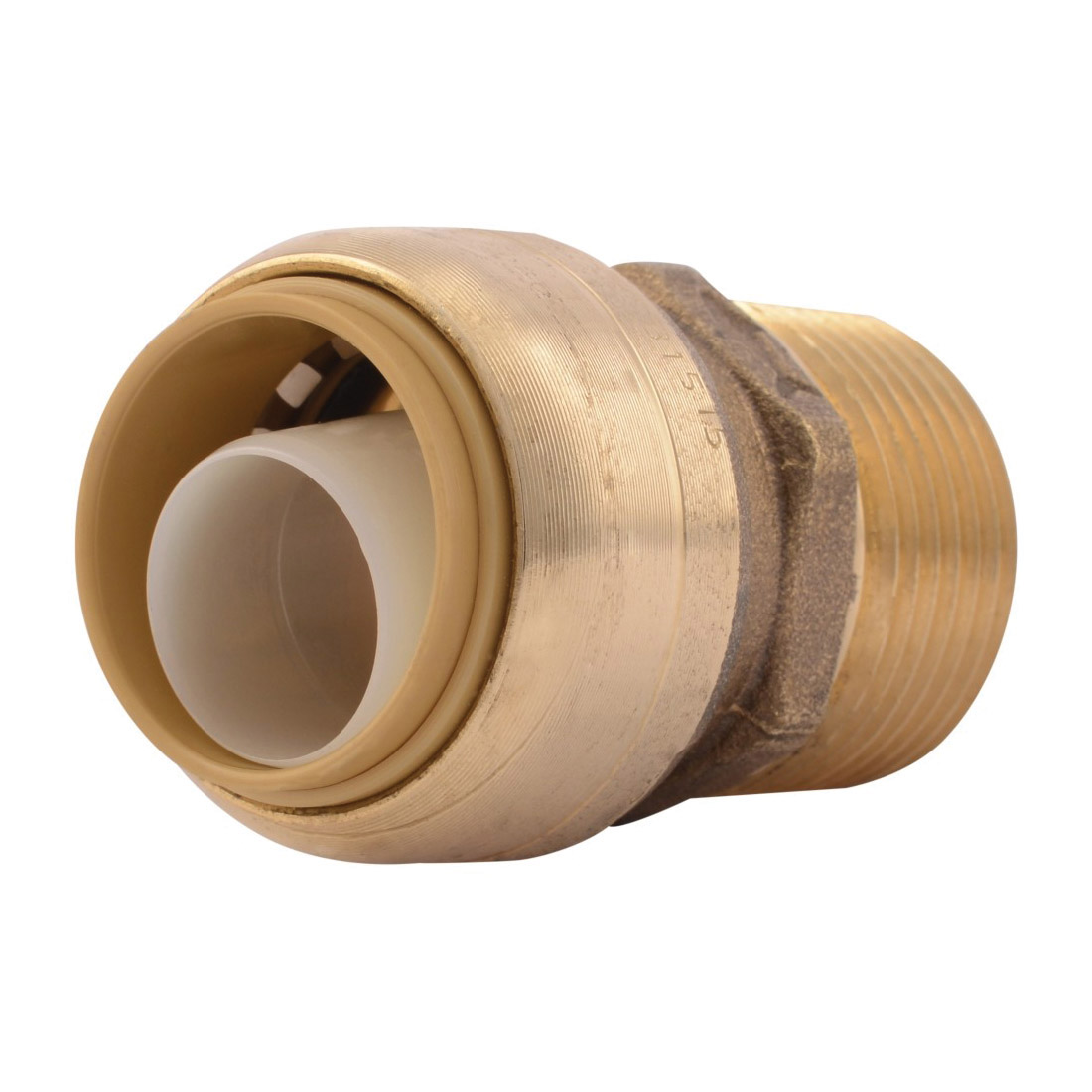

Sharkbite® U134LF Straight Male Connector, 3/4 in Nominal, Push-Fit x MNPT End Style, Brass, Import

SHARKMIPI MFG #: U134LF
Sharkbite® U134LF Straight Male Connector, 3/4 in Nominal, Push-Fit x MNPT End Style, Brass, Import
  • Country of Origin: AU
  • Dimensions: 1.89 in L
  • Domestic/Import: Import
  • End Style: Push-Fit x MNPT
  • Finish: Natural Brass/Polished Chrome
  • Fitting/Connector Type: Connector
  • Manufacturer Name: Reliance Worldwide Corporation
  • Material: Brass
  • Nominal Size: 3/4 in
  • Pressure Rating: 200 psi
  • Temperature Rating: 200 deg F
SharkBite® Male Connectors combine innovative push-to-connect design with a standard MNPT adapter on the opposite end. The push-fit end is compatible with copper, PEX, CPVC, PE-RT or SRD9 HDPE pipes and can be installed with no solder, glue, unions or tools required. This fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200 deg F and 200 psi.
  • Features and More

Features

  • Instant push-fit connection for increased ease-of-use: no soldering, clamps, unions or glue required
  • Fittings certified to 200 psi and 200 deg F (93 deg C) - Proven durability and quality
  • Fits copper tubing and CTS CPVC and PEX - Connects all three types in any combination
  • Integral pipe liner for PEX installations - Integrated design means no loose components, ensures secure, reliable connection
  • Design certified and agency listed inspector friendly, peace of mind
  • Compact, robust lead free DZR brass body: Foundation of a strong, corrosion resistant, durable fitting
  • Design certified to NSF/ANSI 61, NSF/ANSI 14 and ASSE 1061 product standard for used in potable water and hydronic heating water distribution quality engineered and manufactured
  • Approved to be used underground and behind walls without access panels
  • Designed for hydronic heating as well as potable water distribution
  • EPDM O-ring
  • Stainless steel grab ring
  • Polysulfone tube support liner
  • Potable water service
  • For use with copper, CPVC and pex pipe
  • 1-1/8 in D insertion
  • https://youtu.be/IF5ehHMHCdk

Standards/Approvals/Certifications

  • ASSE 1061
  • CSA B125.3
  • IAPMO Listed
  • IPC and cUPC Listed
  • NSF/ANSI 372-2010/14/61

Warranty

  • 25 years Limited
