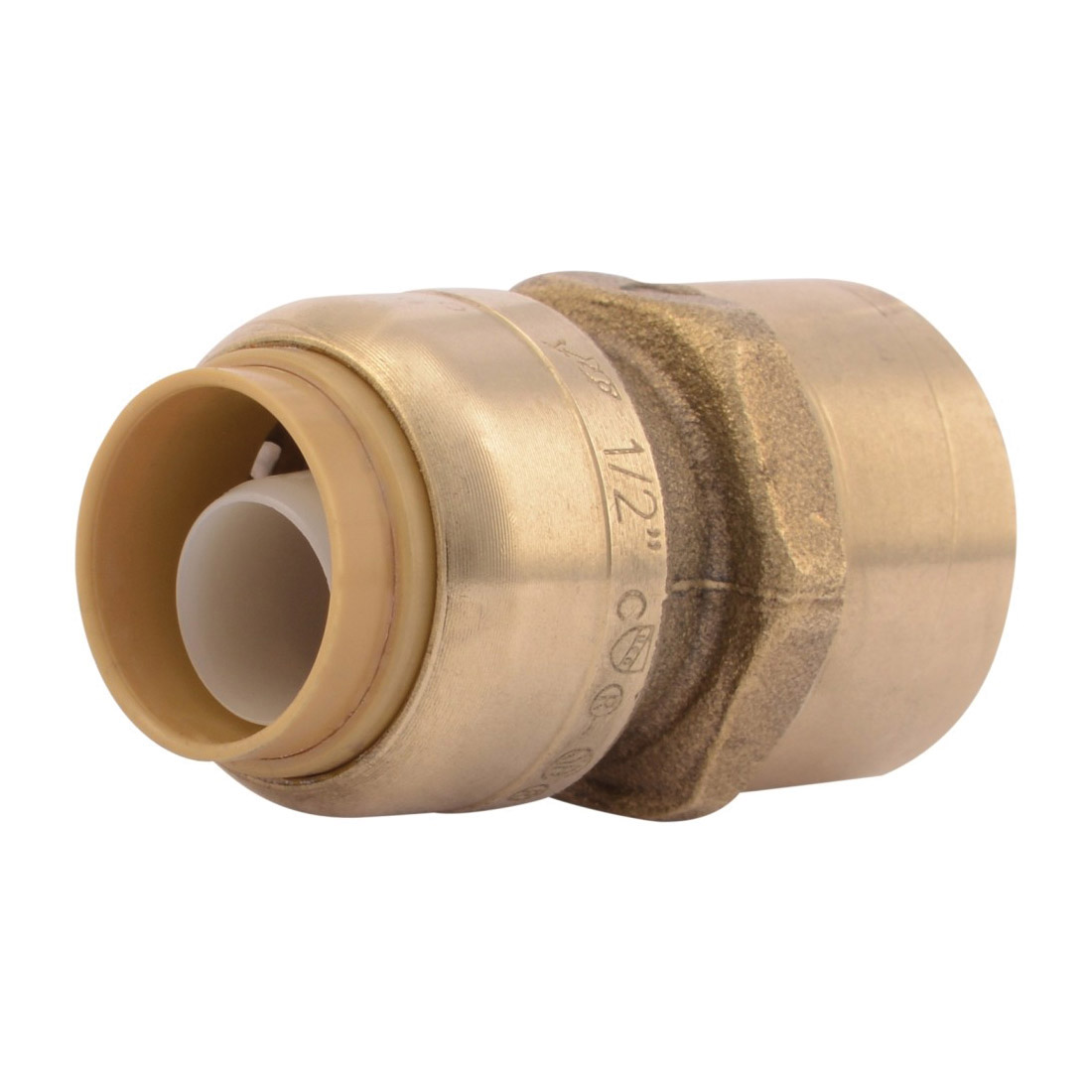

Sharkbite® U072LF Straight Female Connector, 1/2 in Nominal, Push-Fit x FNPT End Style, Brass, Import

SHARKFIPG MFG #: U072LF

Country of Origin: AU
Dimensions: 1.64 in L
Domestic/Import: Import
End Style: Push-Fit x FNPT
Finish: Natural Brass/Polished Chrome
Fitting/Connector Type: Connector
Manufacturer Name: Reliance Worldwide Corporation
Material: Brass
Nominal Size: 1/2 in
Pressure Rating: 200 psi
Temperature Rating: 200 deg F

SharkBite® Female Connectors combine innovative push-to-connect design with a standard FNPT adapter on the opposite end. The push-fit end is compatible with copper, PEX, CPVC or PE-RT pipes and can be installed with no solder, glue, unions or tools required. These fittings are rated to 200 deg F and 200 psi.

Features and More

Features

Instant push-fit connection for increased ease-of-use: no soldering, clamps, unions or glue required
Fittings certified to 200 psi and 200 deg F (93 deg C) - Proven durability and quality
Fits copper tubing and CTS CPVC and PEX - Connects all three types in any combination
Integral pipe liner for PEX installations - Integrated design means no loose components, ensures secure, reliable connection
Design certified and agency listed inspector friendly, peace of mind
Compact, robust lead free DZR brass body: Foundation of a strong, corrosion resistant, durable fitting
Design certified to NSF/ANSI 61, NSF/ANSI 14 and ASSE 1061 product standard for used in potable water and hydronic heating water distribution quality engineered and manufactured
Approved to be used underground and behind walls without access panels
Designed for hydronic heating as well as potable water distribution
EPDM O-ring
Stainless steel grab ring
Polysulfone tube support liner
Potable water service
For use with copper, CPVC and pex pipe
0.938 in D insertion
https://youtu.be/IF5ehHMHCdk

Standards/Approvals/Certifications

ASSE 1061
CSA B125.3
IAPMO Listed
IPC and cUPC Listed
NSF/ANSI 372-2010/14/61

Warranty

25 years Limited
