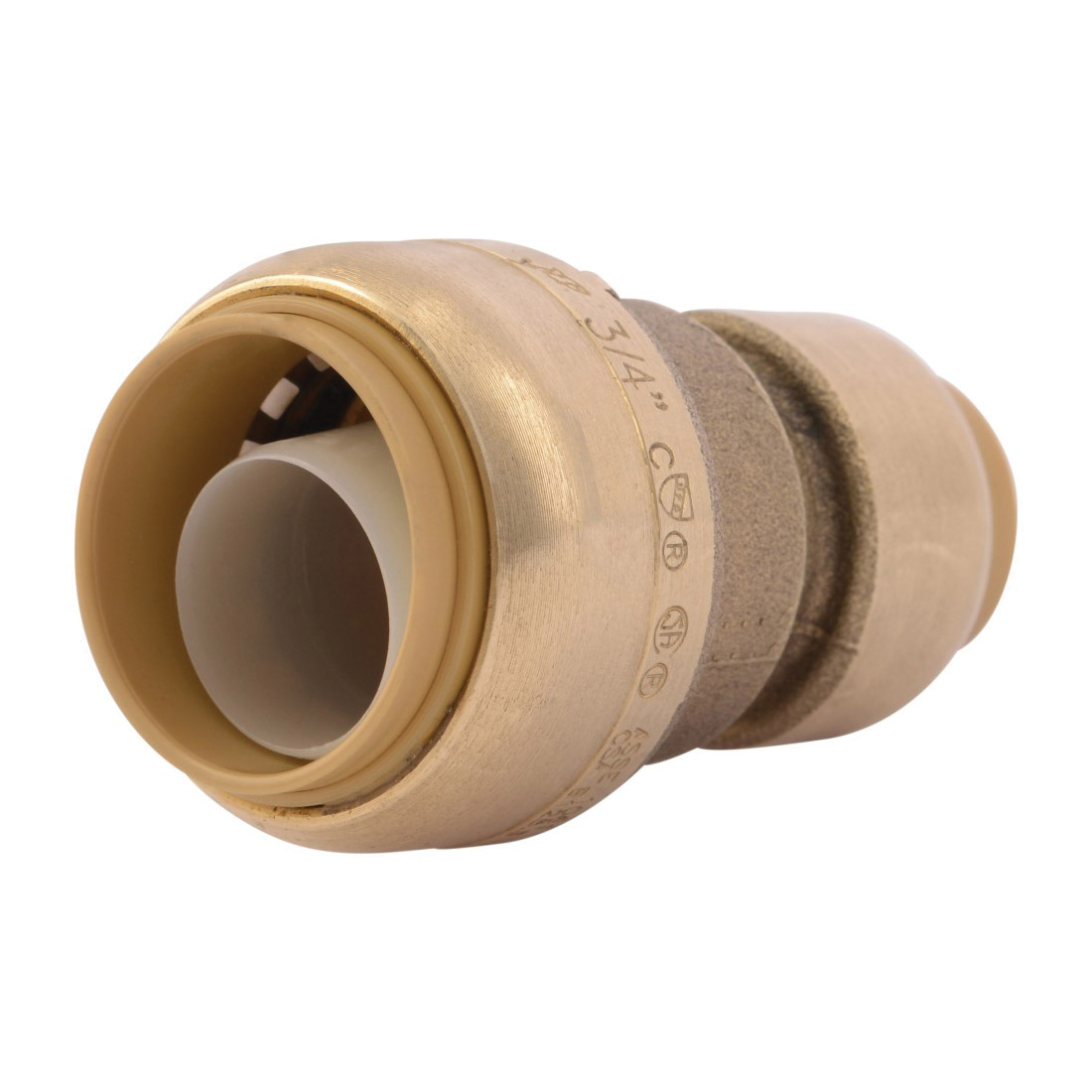

Sharkbite® U058LF Pipe Reducing Coupling, 3/4 x 1/2 in Nominal, Push-Fit End Style, Brass, Import

SHARKCOUPIG MFG #: U058LF
Sharkbite® U058LF Pipe Reducing Coupling, 3/4 x 1/2 in Nominal, Push-Fit End Style, Brass, Import
  • Country of Origin: AU
  • Dimensions: 2.2 in L
  • Domestic/Import: Import
  • End Style: Push-Fit
  • Finish: Natural Brass/Polished Chrome
  • Fitting/Connector Type: Reducing Coupler
  • Manufacturer Name: Reliance Worldwide Corporation
  • Material: Brass
  • Nominal Size: 3/4 x 1/2 in
  • Pressure Rating: 200 psi
  • Temperature Rating: 200 deg F
When transitioning pipe size, there is no easier way than with SharkBite® push-fit reducing couplings. Easily reduce from 1 to 3/4 in or 3/4 to 1/2 in all the way down to 1/4 in sizes. There is no need for solder, glue, clamps or unions, simply push-to-connect and move on. This quick connect fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is also rated to 200 deg F and 200 psi.
  • Features and More

Features

  • Instant push-fit connection for increased ease-of-use: no soldering, clamps, unions or glue required
  • Fittings certified to 200 psi and 200 deg F (93 deg C) - Proven durability and quality
  • Fits copper tubing and CTS CPVC and PEX - Connects all three types in any combination
  • Integral pipe liner for PEX installations - Integrated design means no loose components, ensures secure, reliable connection
  • Design certified and agency listed inspector friendly, peace of mind
  • Compact, robust lead free DZR brass body: Foundation of a strong, corrosion resistant, durable fitting
  • Design certified to NSF/ANSI 61, NSF/ANSI 14 and ASSE 1061 product standard for used in potable water and hydronic heating water distribution quality engineered and manufactured
  • Approved to be used underground and behind walls without access panels
  • Designed for hydronic heating as well as potable water distribution
  • EPDM O-ring
  • Stainless steel grab ring
  • Polysulfone tube support liner
  • Potable water service
  • For use with copper, CPVC and pex pipe
  • https://youtu.be/lgdBv5BK5dQ

Standards/Approvals/Certifications

  • ASSE 1061
  • CSA B125.3
  • IAPMO Listed
  • IPC and cUPC Listed
  • NSF/ANSI 372-2010/14/61

Warranty

  • 25 years Limited
