RWV®

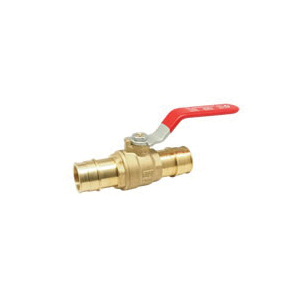

RWV® 5015AB 3/4 Ball Valve With Handle, 3/4 in, PEX Barb, 400 lb, Brass Body, Regular Port

RW5015ABI MFG #: 3/4" 5015AB 3/4"
RWV® 5015AB 3/4 Ball Valve With Handle, 3/4 in, PEX Barb, 400 lb, Brass Body, Regular Port
  • Body Material: Brass
  • End Style: PEX Barb
  • Inlet to Outlet Length: 3.23 in
  • Manufacturer Name: Red-White Valve
  • Media: Gas/Oil/Water
  • Nominal Size: 3/4 in
  • Orifice Size: 1/2 in
  • Pressure Class: 400 lb
  • Top to Inlet Center: 1.77 in
  • Trim Material: Brass Stem and Virgin PTFE Seat
RWV® Ball Valve, 3/4 in Nominal, PEX Barb, 400 lb, Regular Port, Media: Gas/Oil/Water, 1/2 in Orifice, Brass Ball, 3.23 in Inlet to Outlet Length, 1.77 in Top to Inlet Center, Brass Body, Brass Stem and Virgin PTFE Seat Trim,
  • Features and More

Features

  • Double NBR O-Ring packing
  • Blow-out proof stem
  • For use with PEX tubing
  • 300 psi at 15 to 160 deg F
  • 150 psi maximum at 200 deg psi
  • Low-lead brass ball
  • F1960 certifications for pex expansion pipe fittings

Standards/Approvals/Certifications

  • ANSI/NFS 61
  • ASTM-F1960
  • NSF 61-G
  • NSF-372
  • UNS C27453 Body/Stem
