RWV®

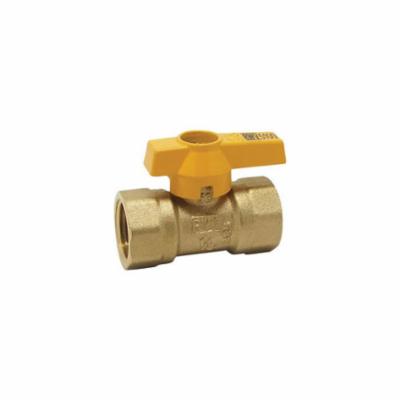

RWV® 5100 1/2 1-Piece Standard Ball Valve With Handle, 1/2 in Nominal, Thread End Style, Brass Body, NBR/FPM Softgoods

PPGASG MFG #: 5100/102-103
RWV® 5100 1/2 1-Piece Standard Ball Valve With Handle, 1/2 in Nominal, Thread End Style, Brass Body, NBR/FPM Softgoods
  • Body Material: Brass
  • End Style: Thread
  • Inlet to Outlet Length: 2-1/8 in
  • Manufacturer Name: Red-White Valve
  • Media: Gas
  • Nominal Size: 1/2 in
  • Orifice Size: 0.4 in
  • Series: 5100
  • Softgoods Material: NBR/FPM
  • Top to Inlet Center: 1-1/4 in
  • Trim Material: Brass Stem and NBR Seat
  • Type: 1-Piece Standard
RWV® Ball Valve, 1-Piece Standard, Series: 5100, 1/2 in Nominal, Thread End Style, 175 psi Pressure, Media: Gas, 0.4 in Orifice, Chrome Plated Brass Ball, 2-1/8 in Inlet to Outlet Length, 1-1/4 in Top to Inlet Center, Brass Body, Brass Stem and NBR Seat Trim, NBR/FPM Softgoods,
  • Features and More

Features

  • NBR O-ring/packing and fpm O-ring seal

Standards/Approvals/Certifications

  • ANSI Z21.15
  • CGA-9.1
  • B283 C37700 Body
  • B124 C37700 Stem/Ball
  • CSA 1/2
  • 2 and 5 psi approved
