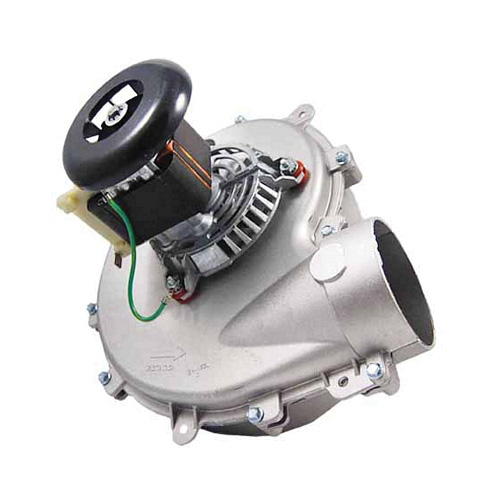

Packard 66833 Shaded Pole Draft Inducer, Open Enclosure, 28 mhp, 115 VAC, 60 Hz, 1 ph Phase, NEMA 3.3 Frame, 3000 rpm Speed

PACK66833 MFG #: 66833

Amperage Rating: 1.6 A
Application Type: Draft Inducer Motors
Bearing Type: Ball
Country of Origin: TW
Dimensions: 3.3 in Dia
Enclosure Type: Open
Frame: NEMA 3.3
Frequency Rating: 60 Hz
Horsepower: 28 mhp
Manufacturer Name: Packard
Phase: 1, 1 ph
Rotation: CW
Speed: 3000 rpm
Type: Shaded Pole
Voltage Rating: 115 VAC

Packard Draft Inducer, Shaded Pole, Application Type: Draft Inducer Motors, 28 mhp, 115 VAC, 1.6 A, 60 Hz, 1 ph, 3000 rpm, 1 Speed, Open, NEMA 3.3 Frame, CW, Ball Bearing, Metal, 3.3 in Dia,

Features and More

Features

Automatic overload protection

Application

Residential Furnaces

Standards/Approvals/Certifications

UL Listed
