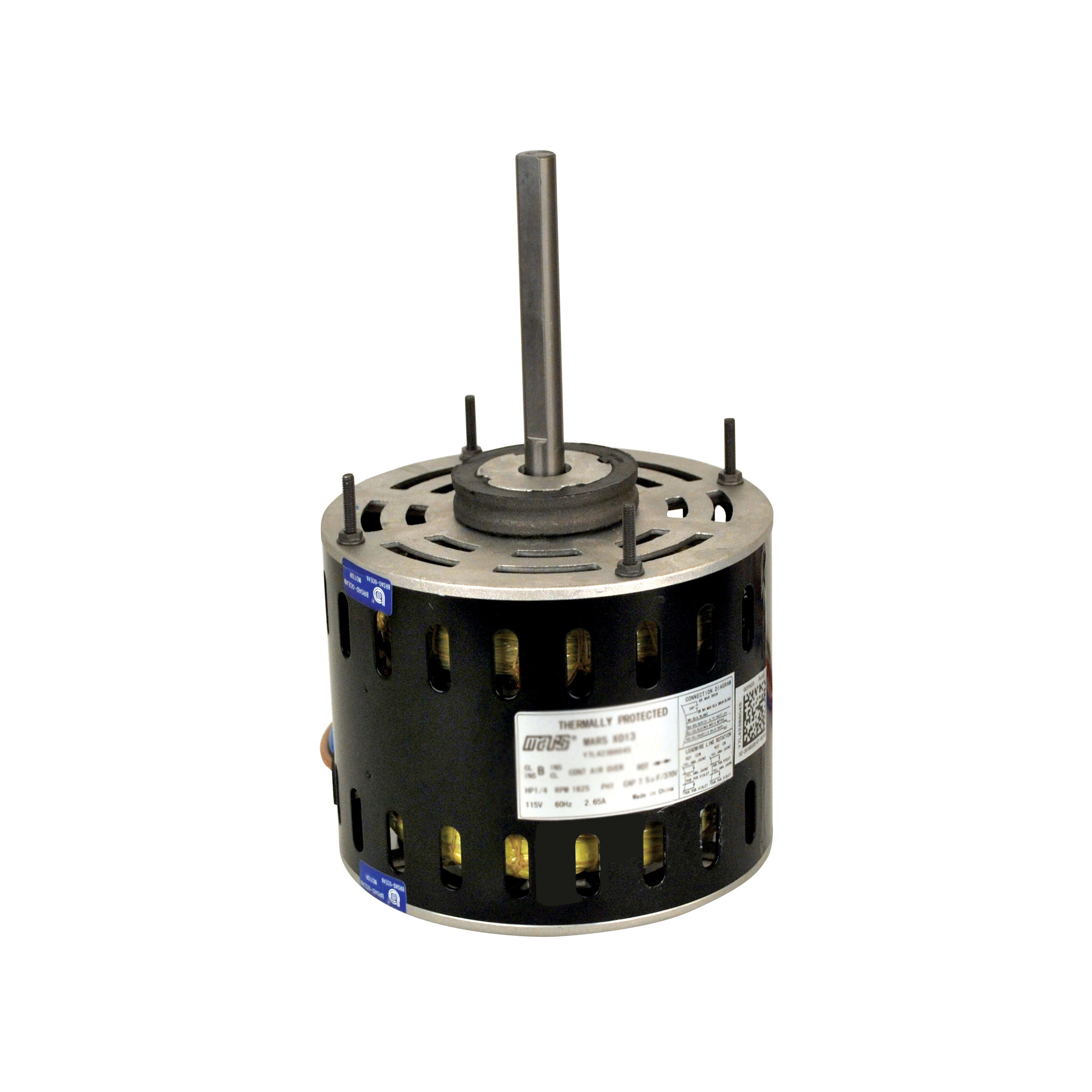

Mars® 30014 Direct Drive Fan/Blower Motor, Open Air Over Enclosure, 1/4 hp, 208 to 230 VAC, 60 Hz, 1 ph, 48 Frame, 1625 rpm Speed, Resilient Base Mount

OA5OZ8 MFG #: 30014
Mars® 30014 Direct Drive Fan/Blower Motor, Open Air Over Enclosure, 1/4 hp, 208 to 230 VAC, 60 Hz, 1 ph, 48 Frame, 1625 rpm Speed, Resilient Base Mount
  • Amperage Rating: 1.3 to 1.2 A Full Load
  • Applicable Materials: Copper, Brass, Zinc, Galvanized Iron and Tin or Copper-Coated Metal
  • Application Type: Fan & Blower Motors
  • Bearing Type: Ball
  • Capacity: 8 oz
  • Composition: Petrolatum, Zinc Chloride, Water, Ammonium Chloride
  • Country of Origin: CN, US
  • Dimensions: 5-1/2 in Dia
  • Enclosure Type: Open Air Over
  • Flash Point: 540 deg F
  • Form: Paste/Solid
  • Frame: 48
  • Frequency Rating: 60 Hz
  • Horsepower: 1/4 hp
  • Insulation Class: Class B
  • Manufacturer Name: Mars, Oatey
  • Mounting Type: Resilient Base
  • pH Range: 3 to 4
  • Phase: 1, 1 ph
  • Rotation: Reversible
  • Shaft Size: 1/2 in Dia x 4-1/2 in L
  • Speed: 1625 rpm
  • Temperature Rating: 40 deg C, 400 to 700 deg F
  • Viscosity: 20000 to 40000 cP
  • VOC Content: 29 g/L
  • Voltage Rating: 208 to 230 VAC
Mars® Direct Drive Fan & Blower Motors are designed to replace PSC and Shaded pole motors, used in direct drive furnace, air conditioners and other blowers.
  • Features and More

Features

  • Resilient ring or thru-bolt mount
  • Ring kit allows 2-1/4 and 2-1/2 in resilient ring mounting
  • 3/4 in extended thru-bolts shaft end
  • Continuous air-over
  • Automatic reset thermal overload protection
  • Capacitor not included
  • 5 uF at 370 VAC capacitor required

Standards/Approvals/Certifications

  • cULus Listed
