NIBCO®

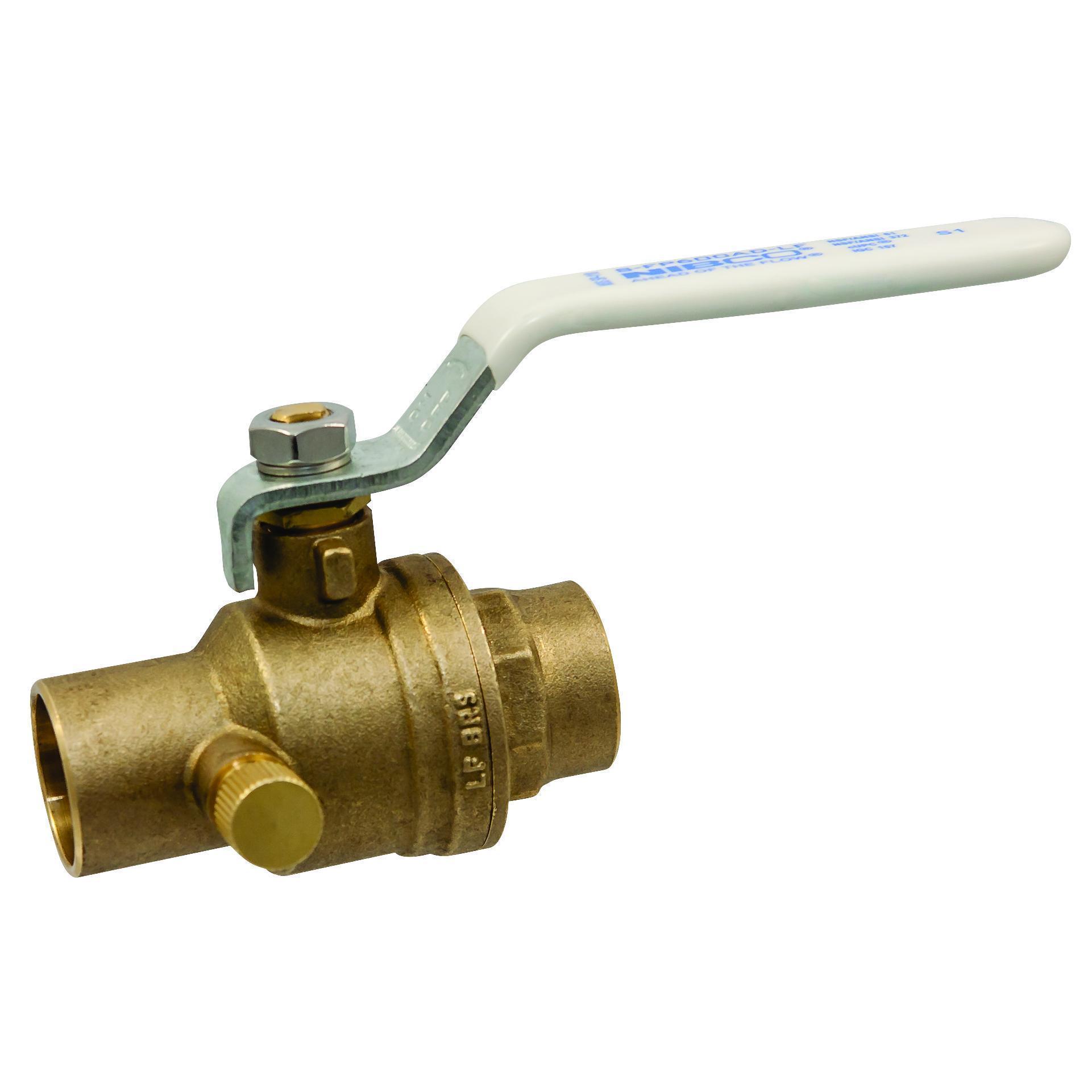

NIBCO® NJ999XA S-FP-600-AD-LF 2-Piece Ball Valve With Drain Port and Cap, 1 in Nominal, Solder End Style, Brass Body, Full Port, Fluorocarbon/PTFE Softgoods, Import

NIBSFP600ADLFK MFG #: NJ999XA
NIBCO® NJ999XA S-FP-600-AD-LF 2-Piece Ball Valve With Drain Port and Cap, 1 in Nominal, Solder End Style, Brass Body, Full Port, Fluorocarbon/PTFE Softgoods, Import
  • Actuator Type: Standard Lever Handle
  • Body Material: Brass
  • Country of Origin: CN
  • Domestic/Import: Import
  • End Style: Solder
  • Inlet to Outlet Length: 3.34 in
  • Manufacturer Name: NIBCO Inc.
  • Media: Gas/Water
  • Nominal Size: 1 in
  • Orifice Size: 1 in
  • Port Type: Full
  • Series: S-FP-600-AD-LF
  • Softgoods Material: Fluorocarbon/PTFE
  • Top to Inlet Center: 4.33 in
  • Trim Material: Brass Stem and PTFE Ball Seat
  • Type: 2-Piece
The NIBCO® lead-free brass Ball Valve provides ease of operation with quarter-turn (90 deg) open to close. The two-piece valve features solder end connections for easy installation. Please refer to NIBCO® technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® Ball Valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO® INC. 2 years limited warranty.
  • Features and More

Features

  • Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
  • PTFE seats
  • Blowout-proof stem
  • Drain port and cap
  • Brass stem and PTFE seat
  • Solder end connections

Application

  • Hot/Cold Water Applications

Standards/Approvals/Certifications

  • IAPMO Listed
  • NSF/ANSI 61-8/372
  • UPC IGC-157
  • PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Warranty

  • 2 years Limited
