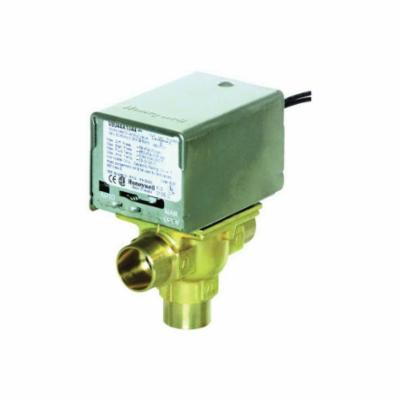

Honeywell Home V8044E1011/U 3-Way Diverting Zone Valve, 3/4 in, C, 125 psi Static, 7 Cv, 24 VAC, Import
Part #: HV8044E1011
MFG #: V8044E1011
On-off and diverting low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Brand : Honeywell Home
Amperage Rating : 0.32 A
Coefficient of Volume : 7 Cv
Country of Origin : HU
Differential : 10 psi
Dimensions : 3-1/2 in W x 2-3/8 in D x 4-13/16 in H
Features
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored
- All models may be installed without disassembling the valve
- Compact construction for easy installation
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
- Actuator motor may be replaced without removing the valve body or draining the system
- EPDM rubber packing
- Buna-N (NBR) rubber ball plug/ball/disc
- Brass seat and stainless steel stem
- Spring return valve action
- 7.7 VA power consumption
- 5 to 95% non-condensing relative humidity (RH)
- 30 sec nominal open
- 50/60 Hz frequency
- 125 deg F maximum ambient temperature
- Normally closed de-energized position
Application
- Hydronic Control
Standards/Approvals/Certifications
- UL MH11826
