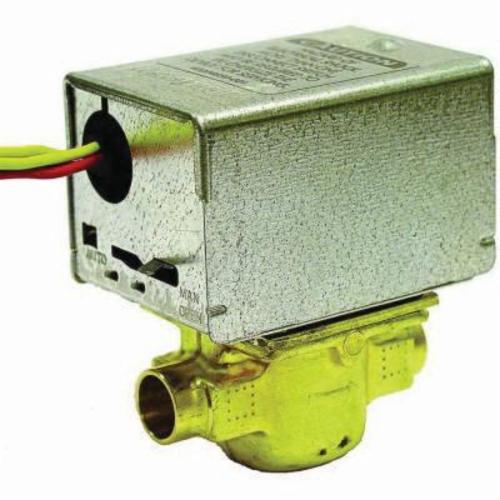

Honeywell Home V8043E1004/U 2-Way Low Voltage Zone Valve, 1/2 in, C, 125 psi, 3.5 Cv, 24 VAC

HV8043E1004 MFG #: V8043E1004
Honeywell Home V8043E1004/U 2-Way Low Voltage Zone Valve, 1/2 in, C, 125 psi, 3.5 Cv, 24 VAC
  • Amperage Rating: 0.32 A
  • Coefficient of Volume: 3.5 Cv
  • Country of Origin: HU
  • Differential: 20 psi
  • Dimensions: 4 in H x 3-1/2 in W x 2-3/8 in D
  • Electrical Connections: 18 in Lead
  • End Style: C
  • Manufacturer Name: Resideo Technologies
  • Material: Brass
  • Nominal Size: 1/2 in
  • Pressure Rating: 125 psi
  • Series: V8043
  • Type: 2-Way Low Voltage
  • Voltage Rating: 24 VAC
  • Water Temperature: 50 to 200 deg F
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
  • Features and More

Features

  • Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored
  • All models may be installed without disassembling the valve
  • Compact construction for easy installation
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
  • Actuator motor may be replaced without removing the valve body or draining the system

Application

  • Hydronic Control
