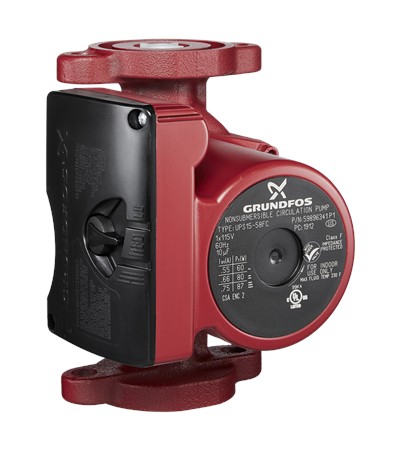

Grundfos VersaFlo® 59896341 UPS Canned Rotor Circulator Pump, 115 VAC, 1 ph
Part #: GRUPS1558FC
MFG #: 59896341
UPS pumps constitute a complete range of 3-speed circulator pumps, available both in 50 and 60 Hz. The pumps can be used in both open and closed systems. UPS pumps are of the canned rotor type, i.e. pump and motor form an integral unit without a shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
Brand : Grundfos
Amperage Rating : 0.55 to 0.75 A
Bearing Type : Ceramic Radial/Carbon Thrust
Country of Origin : US
Dimensions : 5-1/4 in W x 6-1/2 in H
Frequency Rating : 60 Hz
Features
- Maintenance-free
- Low noise and low energy
- Complete range and wide range of accessories
- Stainless steel rotor can and bearing plate
- Corrosion-resistant impeller
- No additional motor protection is required
- Non-electronically controlled circulator pumps for domestic building with speed control
- Removable check valve
- Flange pipe connection
- Cast iron pump housing
- Small stator
- 3-speed motor
Application
- 1 and 2-Pipe Heating Systems
- Main Pumps
- Zone Pumps
- Boiler Shunt Pumps
- Pumps for Heating Surfaces
- Calorifiers
- Underfloor Heating Systems
- Solar Heating Systems
- Heat Pump Systems
- Geothermal Heating Systems
- Heat Recovery Systems
- 2-Pipe Air-Conditioning Systems and Pumps for Refrigeration Units
Includes
- 85904401 Motor
Standards/Approvals/Certifications
- ASTM 30 B
- CSA Certified
- UL Listed
