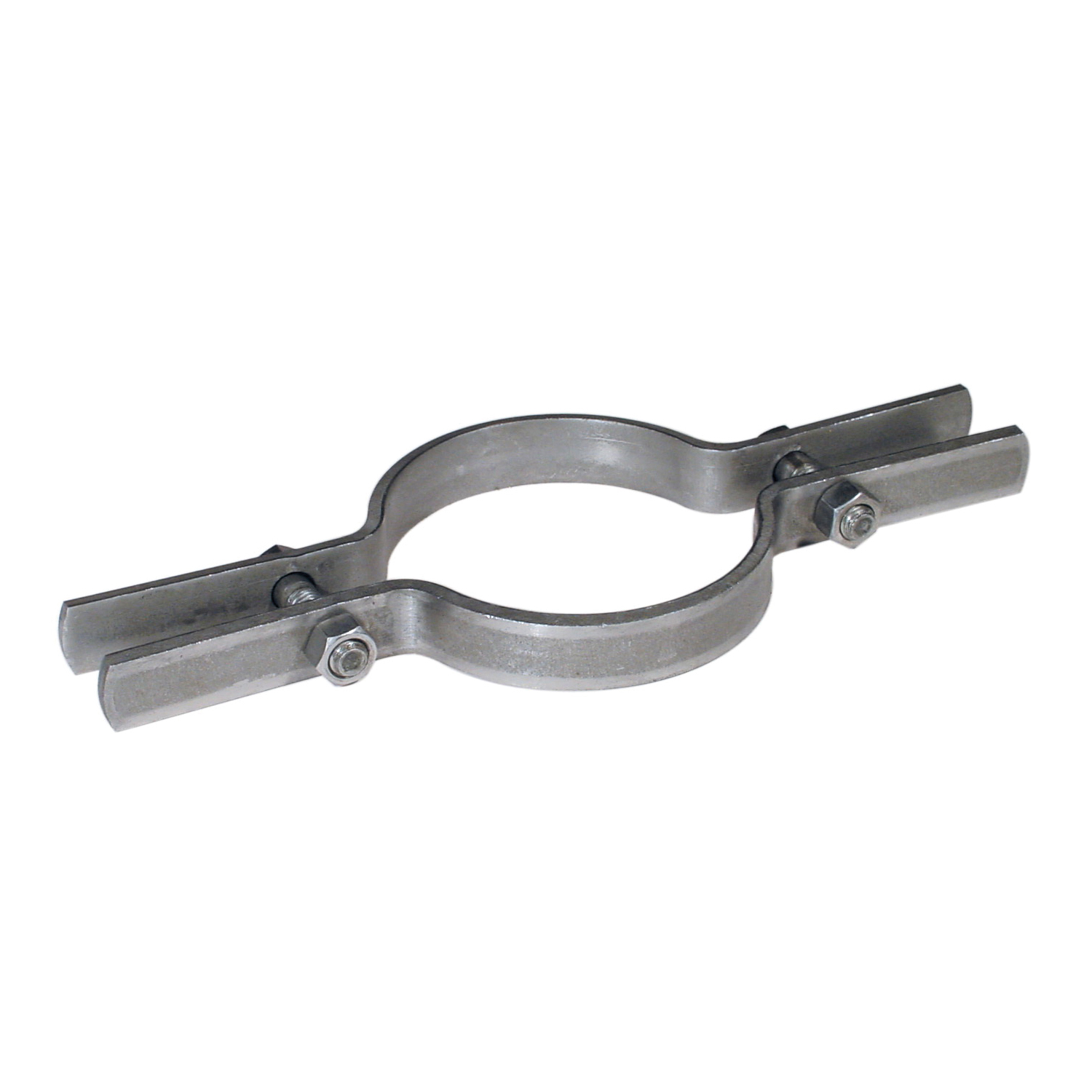

Anvil® 0500173562 FIG 261 Riser Clamp, 2 in Pipe, 7/16 in Dia Bolt, 300 lb Load, Carbon Steel, Black Oxide, Domestic
Part #: FMIPRISERN
MFG #: 0500173562
Anvil® Riser Clamp, Series: FIG 261, 2 in Pipe, 7/16 in Bolt Dia, 300 lb, 32 ft-lb, Carbon Steel, Black Oxide, 10-1/4 in L x 1 in W, Domestic,
Brand : Anvil®
Bolt Diameter : 7/16 in
Country of Origin : US
Dimensions : 10-1/4 in L x 1 in W
Domestic/Import : Domestic
Finish : Black Oxide
Features
- For support of stationary steel pipe risers, cast iron pipe or conduit.
- Clamp is fitted and bolted preferably below a coupling, hub or welded lugs on steel pipe
- Bolt torques should be PEX industry standards
- Clamp is designed for standard steel pipe O.D and this must be considered in sizing the riser for other types of piping
Application
- For support of stationary steel pipe risers
- cast iron pipe or conduit
Standards/Approvals/Certifications
- A-A-1192A (Type 8)
- ANSI/MSS SP-69 and MSS SP-58 (Type 8)
- cULus Listed
