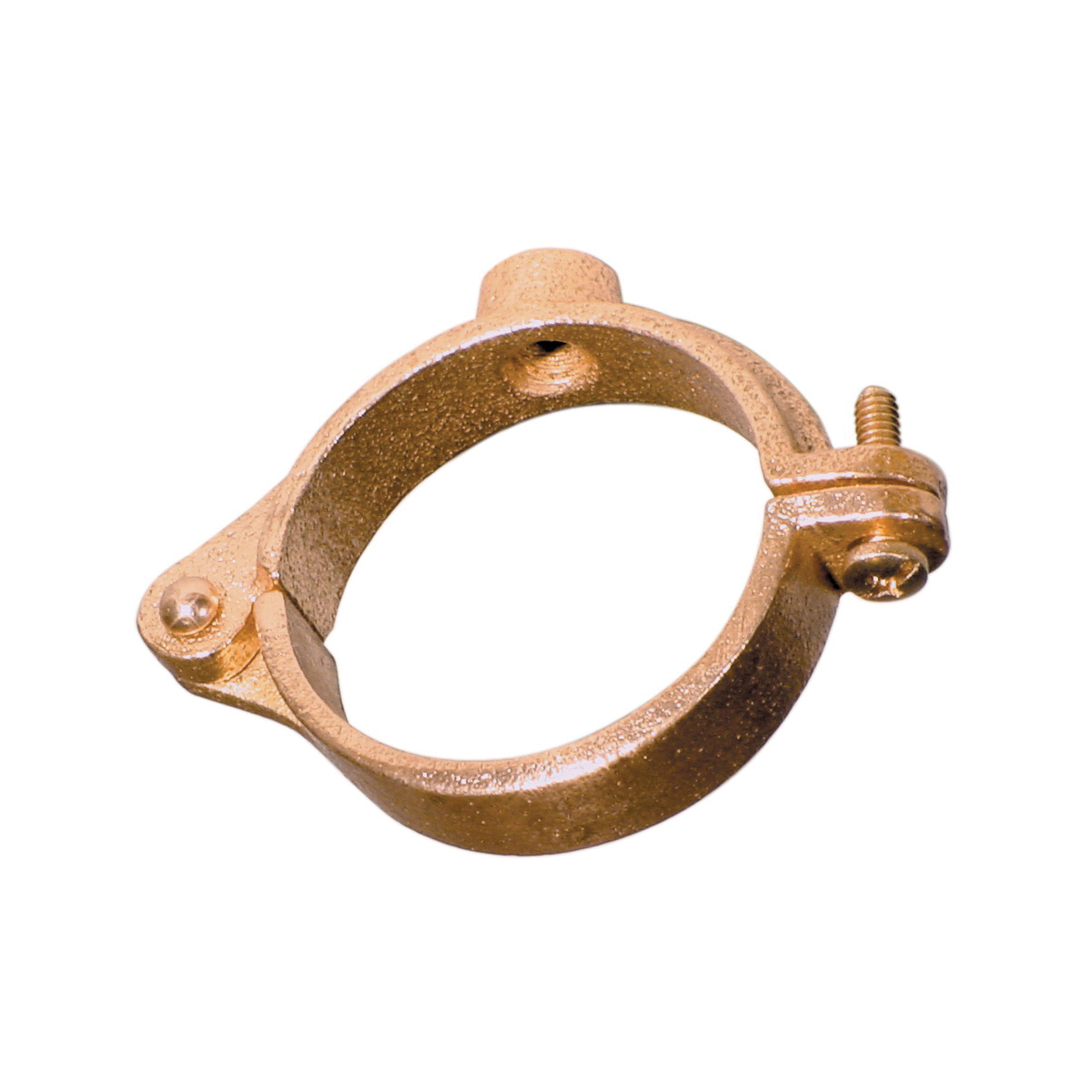

SPF/Anvil™ 0560018913 FIG CT-138R Extension Split Tube Clamp, 3/4 in Pipe/Tube, 180 lb Load, Malleable Iron, Copper Plated, Import
Part #: FMCSPLITCLAMPI
MFG #: 0560018972
SPF/Anvil™ Extension Split Tube Clamp, Series: FIG CT-138R, 3/4 in Pipe/Tube, 180 lb, 3/4 in Thickness, Malleable Iron, Copper Plated, 2-1/4 in W, Import,
Brand : SPF/Anvil™
Country of Origin : CN
Dimensions : 2-1/4 in W
Domestic/Import : Import
Load Capacity : 180 lb
Manufacturer Name : ASC Engineered Solutions
Features
- Hinged design provides for economical installation
- Designed to provide a tight fit on copper tubing
Application
- For Suspension of Non-Insulated Stationary Pipe Lines
Standards/Approvals/Certifications
- ANSI/MSS SP-69 (Type 12)
- Federal A-A-1192A (Type 12)
- Federal WW-H-171-E (Type 12)
- MSS SP-58 (Type 12)
