Cash Acme®

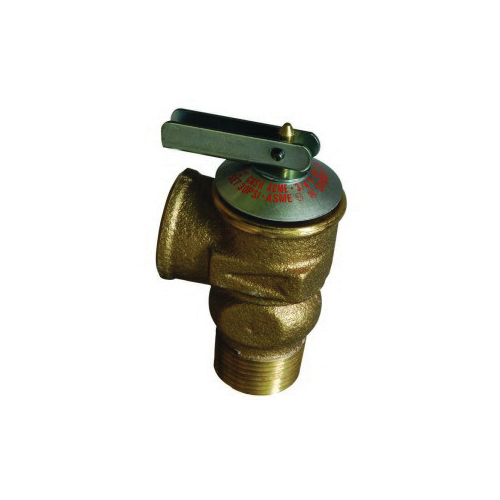

Cash Acme® 22887 F-30 Pressure Relief Valve, 3/4 in, Male Inlet x Female Outlet, 30 psi, Brass Body

CASHF30I MFG #: 22887-0030
Cash Acme® 22887 F-30 Pressure Relief Valve, 3/4 in, Male Inlet x Female Outlet, 30 psi, Brass Body
  • Body Material: Brass
  • Domestic/Import: Domestic
  • End Style: Male Inlet x Female Outlet
  • Manufacturer Name: Reliance Worldwide Corporation
  • Media: Water
  • Nominal Size: 3/4 in
  • Series: F-30
  • Softgoods Material: Silicon Seat Disc
  • Top to Inlet Center: 1-9/16 in
The F-30 is a compact and economical ASME Safety Relief Valve for use on hot water space heating boilers, water supply heaters, and storage tanks. It features an all brass body, brass internal parts, a silicone seat disc and a stainless steel pressure spring. The F-30 Relief Valve is designed for use on hot water service only and is not to be used on steam. The F-30 is available in 3/4 in size only. The standard factory pressure relief setting is 30 psi.
  • Features and More

Features

  • Compact and economical: Saves space and money
  • Every valve is tested for performance prior to shipping: Specify and install with confidence
  • 30 psi factory setting

Application

  • Plumbing

Standards/Approvals/Certifications

  • NB Listed to ASME Boiler Code Section IV

Warranty

  • 2 Years
