Caleffi

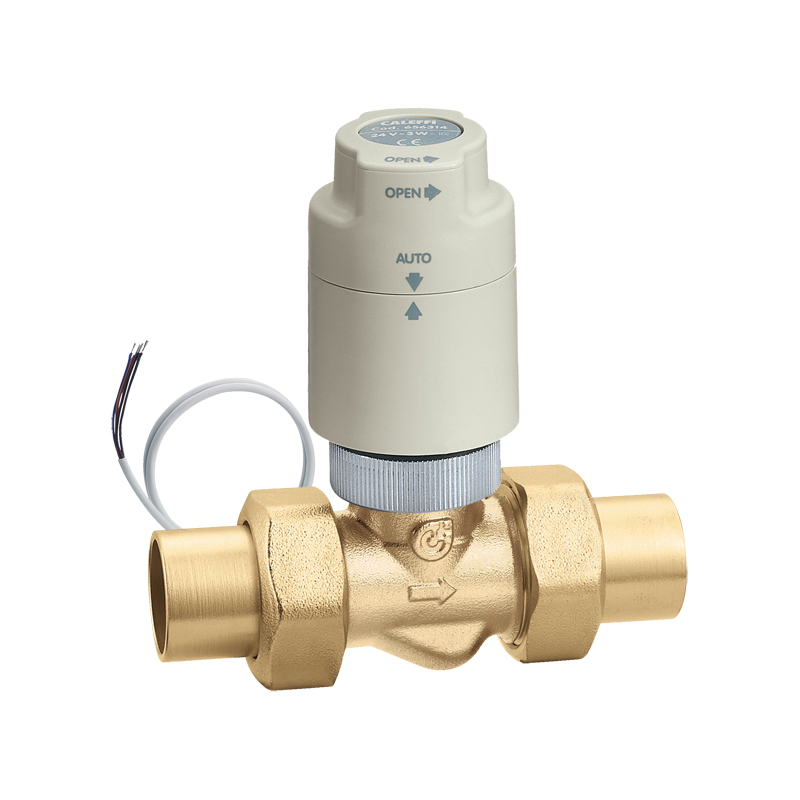

Caleffi 676259A 2-Way Thermo-Electric Zone Valve With TwisTop™ 656314 Actuator, 3/4 in, C, 150 psi, 4 Cv, 24 VAC/VDC

CAL676259A MFG #: 676259A
Caleffi 676259A 2-Way Thermo-Electric Zone Valve With TwisTop™ 656314 Actuator, 3/4 in, C, 150 psi, 4 Cv, 24 VAC/VDC
  • Amperage Rating: 5 A
  • Coefficient of Volume: 4 Cv
  • Differential: 20 psi
  • Dimensions: 4-3/16 in L
  • Electrical Connections: 31-1/2 in Wire
  • End Style: C
  • Manufacturer Name: Caleffi
  • Material: Brass
  • Nominal Size: 3/4 in
  • Pressure Rating: 150 psi
  • Series: 6762
  • Voltage Rating: 24 VAC/VDC
  • Water Temperature: 200 deg F
Zone valves are used to control hot and chilled water in heating and airconditioning systems. Coupled with a thermo-electric control actuator and controlled by a room thermostat, they allow automatic on/off control of the hydronic circuit.
  • Features and More

Features

  • https://youtu.be/78q1isV_BbQ?list=PLuuV0ELkYb5WmC5Hajy0edXSbaVlHgkfm

Standards/Approvals/Certifications

  • CE Certified
  • FM 21654
  • ISO 9001
  • ICIM Certified
