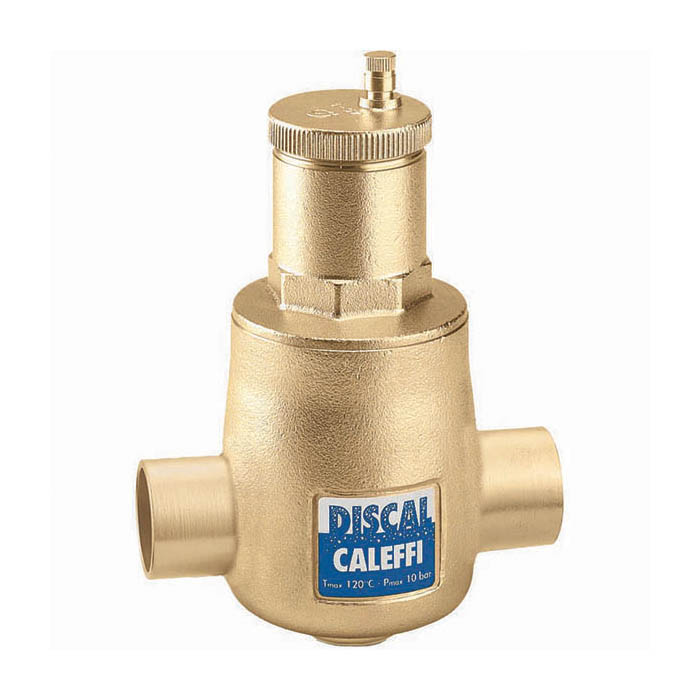

Caleffi DISCAL® 551054A Air Separator, 2 in Nominal, Solder Connection, 150 psi Working, 32 to 250 deg F, Brass

CAL551054A MFG #: 551054A
Caleffi DISCAL® 551054A Air Separator, 2 in Nominal, Solder Connection, 150 psi Working, 32 to 250 deg F, Brass
  • Connection Type: C, Solder
  • Dimensions: 6-1/8 in W x 8-1/4 in H
  • Manufacturer Name: Caleffi
  • Material: Brass
  • Nominal Size: 2 in
  • Series: 551
  • Suitable Media: Water/Glycol Solution
  • Temperature Rating: 32 to 250 deg F
  • Working Pressure: 150 psi
The DISCAL® air separator is used to continuously remove the air contained in hydronic circuits of heating and cooling systems. The air discharge capacity is very high. They automatically remove all the air present in the system down to micro-bubble level with low head loss due to the special internal shape of the separator body. Flow direction of the DISCAL® air separator is bidirectional; flow in either direction is permitted. The circulation of fully de-aerated water enables the equipment to operate under optimum conditions, free from noise, corrosion, localized or mechanical damage. Micro-bubbles, fusing with each other, increase in volume (get larger) until they become large enough to rise to the top where they are automatically released.
  • Features and More

Features

  • Anti-rotation/anti-vibration pinned float - Creates space between float and air vent wall to prevent float hang-up from debris or variations in separator installation orientation
  • Large-diameter chamber - Slows fluid flow dramatically, combines with concentric, sharp-edged mesh design to cause micro-bubbles to efficiently collect and coalesce, highly effective automatic air elimination
  • Anti-corrosion coalescing mesh - Constructed of glass-filled nylon, more resistant to dissolved oxygen and acidic fluids than plated metals
  • Robust stainless steel float linkages - Reliable float alignment even during turbulent conditions such as filling from bottom
  • Corrosion resistant - All components highly resistant to hydronic chemical additives or unstable pH fluid
  • Air separator with 1/2 in check valve to mount expansion tank on bottom thread
  • Stainless steel float guide pin and linkage
  • Glass reinforced nylon internal element
  • https://youtu.be/Cisy3h0HYmo?list=PLuuV0ELkYb5WxbV4vT_fiKP6QyOTxErIt

Application

  • For used to continuously remove the air contained in hydronic circuits of heating and cooling systems

Standards/Approvals/Certifications

  • ANAB Accredited ISO 9001
  • BSI FM 21654
  • ICIM UNI EN ISO 9001:2008
