Matco-Norca™

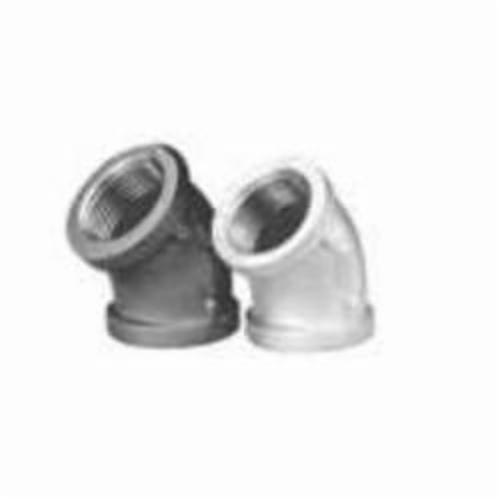

Matco-Norca™ ZMBL4503 Pipe Elbow, 1/2 in Nominal, Thread End Style, 150 lb, Malleable Iron, Black, Import

BF45G MFG #: ZMBL4503 / 520-203
Matco-Norca™ ZMBL4503 Pipe Elbow, 1/2 in Nominal, Thread End Style, 150 lb, Malleable Iron, Black, Import
  • Country of Origin: TH
  • Domestic/Import: Import
  • End Style: Thread
  • Finish: Black
  • Fitting/Connector Type: 45 deg Elbow
  • Manufacturer Name: Matco-Norca
  • Nominal Size: 1/2 in
  • Pressure Class: 150 lb
  • Pressure Rating: 300 psi
  • Temperature Rating: -20 to 151 deg F
Matco-Norca™ Pipe Elbow, 45 deg Elbow Fitting/Connector, 1/2 in Nominal, Thread End Style, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Black, -20 to 151 deg F, Domestic/Import: Import,
  • Features and More

Features

  • Meets or exceeds all applicable ASTM and ANSI standards
  • 100 percent pressure tested before leaving the factory
  • Chinese fittings

Standards/Approvals/Certifications

  • ANSI/ASME B16.3
  • ASME B16.14
  • ASTM A197/A197M Equivalent to EN1562
  • BS 21
  • DIN 2999
  • DIN EN 10242 Equivalent to BS 143 and 1256:2000
  • FM Approved
  • UL/ULC Listed
