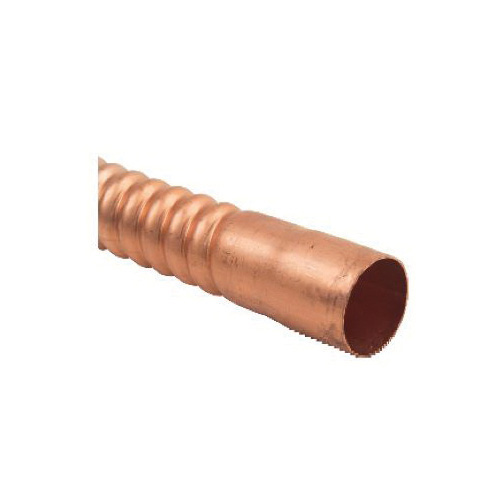

BrassCraft® Copper-Flex™ WB034-18N Water Heater Connector, 3/4 in Nominal, FNPT x Male/Female C End Style, 18 in L, 125 psi Working, Corrugated Copper, Domestic
BCWB03418
MFG #: 7211-18-34FIP-S
- Country of Origin: US
- Domestic/Import: Domestic
- End Style: FNPT x Male/Female C
- Inside Diameter: 7/8 in
- Length: 18 in
- Manufacturer Name: BrassCraft Manufacturing
- Material: Corrugated Copper
- Nominal Size: 3/4 in
- Outside Diameter: 7/8 in
- Series: WB034
- Working Pressure: 125 psi
- Features and More
Features
- For use in exposed locations only to connect water heaters and other water connected devices to the water supply
- Patented internal dielectric sleeve effectively isolates dissimilar metals within the waterway to prevent galvanic corrosion
- No dielectric union needed, the integrated dielectric sleeve eliminates the need to install an additional dielectric union, reducing time and installation costs
- Requires less torque to seal with a pliable Nitrile rubber washer, especially on rough nipple surfaces
- Longer connector nuts allow a greater number of thread-to-thread contacts and a better seal
- Engineered and tested for harsh water conditions
- For use Indoor
- 180 deg F intermittent temperature
Application
- Residential and Commercial
Standards/Approvals/Certifications
- PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
