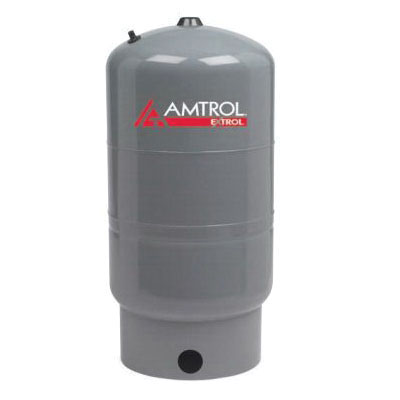

Amtrol® EXTROL® 118-153 SX Series Vertical Floor-Standing Boiler System Expansion Tank, 44 gal Capacity, 0.77 Acceptance, 34 gal Acceptance, 100 psi Pressure, Heavy Duty Butyl/EPDM Diaphragm, 22 in Dia x 36 in H
AMSX90V
MFG #: SX-90V
- Acceptance Capacity: 34 gal
- Acceptance Factor: 0.77
- Capacity: 44 gal
- Country of Origin: US
- Diameter: 22 in
- Domestic/Import: Domestic
- Finish: Urethane Topcoat
- Height: 36 in
- Manufacturer Name: Amtrol
- Material: Steel Shell
- Pressure Rating: 100 psi
- Series: SX Series
- Type: Vertical Floor-Standing
- Features and More
Features
- These non-ASME tanks are available in sizes up to 86 gallons and can be used with high output boilers up to 1,500,000 BTU's
- Accepts expanded water as system temperature rises to reduce pressure build-up
- 12 psig factory precharged
- 1-1/4 in NPTF steel system connection
- 2-3/16 in stand to connection
- Projection welded air valve
Application
- Large Residential and Light Commercial Closed
- Non-Potable
- Hydronic Heating Systems
Standards/Approvals/Certifications
- ISO 9001:2008
