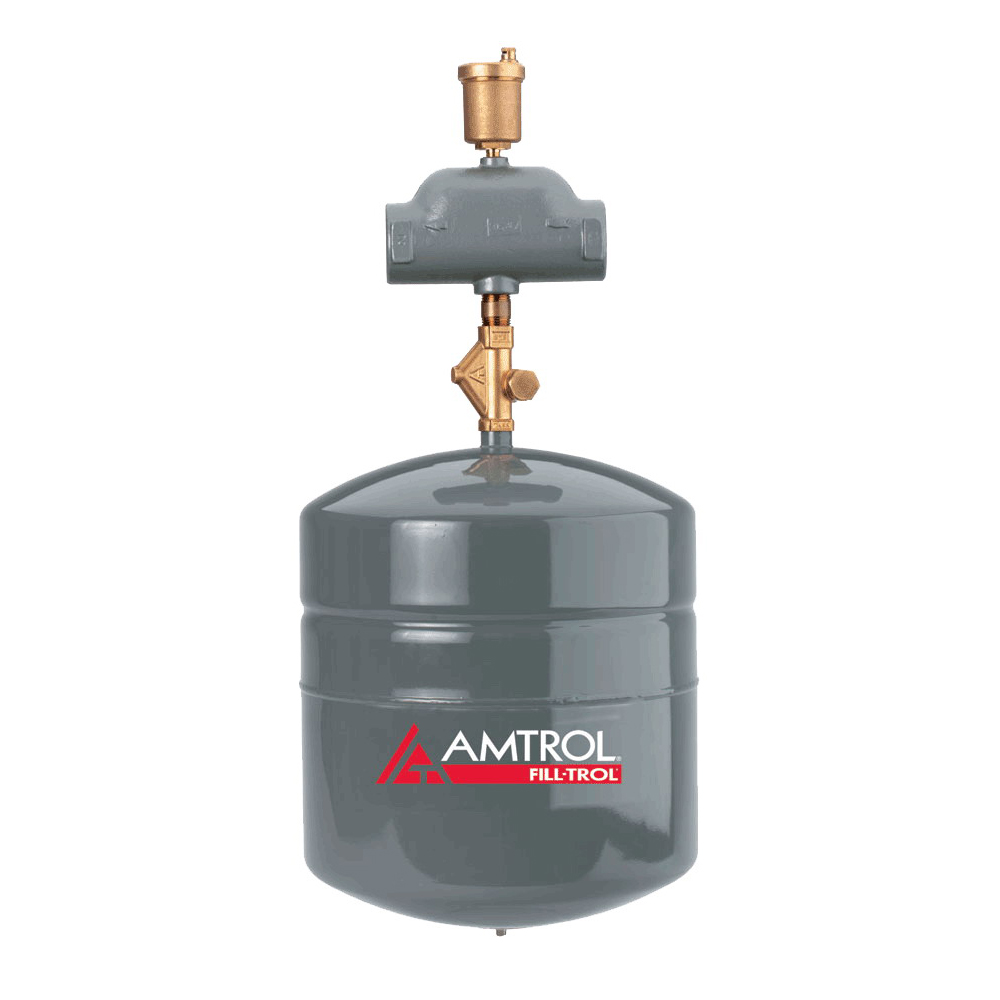

Amtrol® FILL-TROL® 110-1 FT Series Boiler System Expansion Tank With Fill Control Valve, 4.4 gal Capacity, 0.57 Acceptance, 2.5 gal Acceptance, 100 psi Pressure, Heavy Duty Butyl/EPDM Diaphragm, 11 in Dia x 16 in H

Part #: AM110

MFG #: FT110

Features and More

Features

• The AMTROL FILL-TROL® system consists of a specially adapted EXTROL® pre-pressurized, diaphragm-type expansion tank and the FILL-TROL, a specially designed, automatic, fill valve
• Accepts expanded water as system temperature rises to reduce pressure build-up
• Eliminates need for a separate, automatic fill valve
• Fully adjustable
• Helps reduce energy consumption and reduces system wear
• Automatic air vent eliminates system air
• Air purger separates air from water
• System connection sets the point of no pressure change
• Water-tight reservoir for expanded water
• Sealed air cushion-factory precharged and 100% tested
• 12 psig factory precharged
• Strong, deep-drawn steel tank
• Projection welded air stem maintains precharge setting
• Tank pressure controls system fill
• Spring-loaded check valve
• Automatic shut-off valve spring
• Removable strainer
• Cold water supply
• Expansion bypass
• Fill gate stem

Application

• For use in closed non-potable hydronic heating and chilled water systems and suitable in propylene glycol applications

Standards/Approvals/Certifications

• ISO 9001-2008

Warranty

• 5 Years Limited
