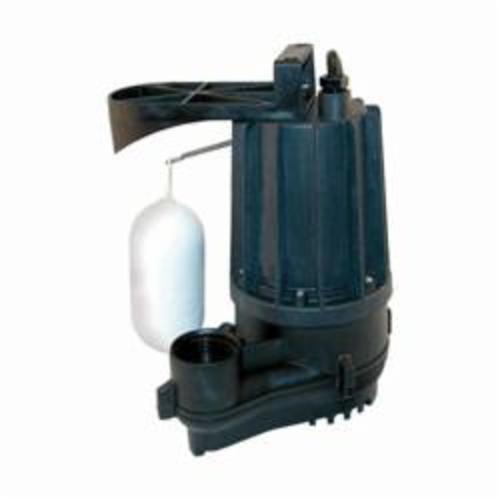

Zoeller® 72-0001 Single Seal Submersible Dewatering Pump, 38 gpm Flow Rate, 1-1/2 in NPT Outlet, 1 ph, 3/10 hp, Engineered Plastic
ZOM72
MFG #: 72-0001
- Amperage Rating: 3.1 A
- Bearing Type: Ball
- Country of Origin: US
- Dimensions: 9-1/16 in W x 11-13/16 in H
- Frequency Rating: 60 Hz
- Horsepower: 3/10 hp
- Impeller Type: Non-Clogging Vortex
- Manufacturer Name: Zoeller Company
- Material: Engineered Plastic
- Maximum Head: 18 ft
- Motor Speed: 3450 rpm
- Outlet Size: 1-1/2 in NPT
- Phase: 1 ph
- Series: 72 Series
- Voltage Rating: 115 VAC
- Features and More
Features
- Non-corrosive, engineered plastic motor housing, pump housing and base
- No steel sheet metal parts to rust or corrode
- Thermal overload motor protection
- Oil-free cooling
- 2-pole, float-operated mechanical switch
- Passes 3/8 in spherical solids
- Solid, buoyant, polypropylene float
- Completely submersible and hermetically sealed
- Watertight and dust-tight
- 7-3/8 in on point and 3-5/8 in off point
- NBR gasket, 42OJ2 stainless steel motor shaft
- Carbon and ceramic mechanical seal
- 9 ft cord
- Automatic or non automatic operation
Application
- Alarm Systems
- Dewatering
- Duplex Systems and Variable Level Float Switches
Standards/Approvals/Certifications
- CSA Certified
- CE Certified
- SSPMA Standard
Warranty
- 1 Year
