- Actuator Type: Lever Handle, Lever Operated
- Ball Material: HCP Brass
- Body Material: Brass
- Color: Brass
- Country of Origin: CN
- Domestic/Import: Import
- End Style: FNPT Union x C, IPS Union x C
- Inlet to Outlet Length: 4.19 in, 4-3/16 in
- Manufacturer Name: NIBCO Inc.
- Media: Gas/Oil/Water, Glycol Mixture/Oil/Water
- Nominal Size: 1 in
- Orifice Size: 1/2 in
- Port Type: Full
- Series: 5043, Pro-Pal® 5043
- Softgoods Material: EPDM/PTFE, PTFE
- Top to Inlet Center: 2.63 in, 2-5/8 in
- Trim Material: Brass Stem and PTFE Seat, Brass/PTFE

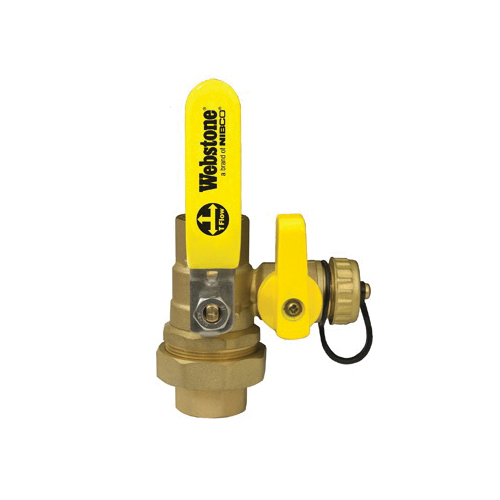

Designed for residential, commercial or industrial use with water, oil or gas. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.
- Features and More
Features
- Reversible handle for added versatility
- Replaces 6 components, eliminates 5 leak paths saves, 45 min of labor
- Easily disconnect and replace any portion of a piped system
- PTFE seat/packing
- With single union end, hi-flow hose drain
- Winterize an entire building with simple quarter-turn actions
- Blow-out proof stem
- Full port forged brass ball valve
- Unionconnectionallowforanysystemappliancetobeeasilydisconnectedforreplacement
- Brass stem
- Exclusive adjustable flow path allows for draining from either side of the ball
- EPDM gasket/O-ring
- Eliminate five leak path
- Eliminate assemblies needed to isolate and drain any portion of a piped system
- Replace six component
- PTFE stem seal
- https://youtu.be/oe-Vugd9RP8
Application
- Residential
- Commercial and Industrial Applications
Includes
- Adjustable Packing Gland
Standards/Approvals/Certifications
- ANSI B1.20.1
- ISO 9001
- PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warranty
- Lifetime
