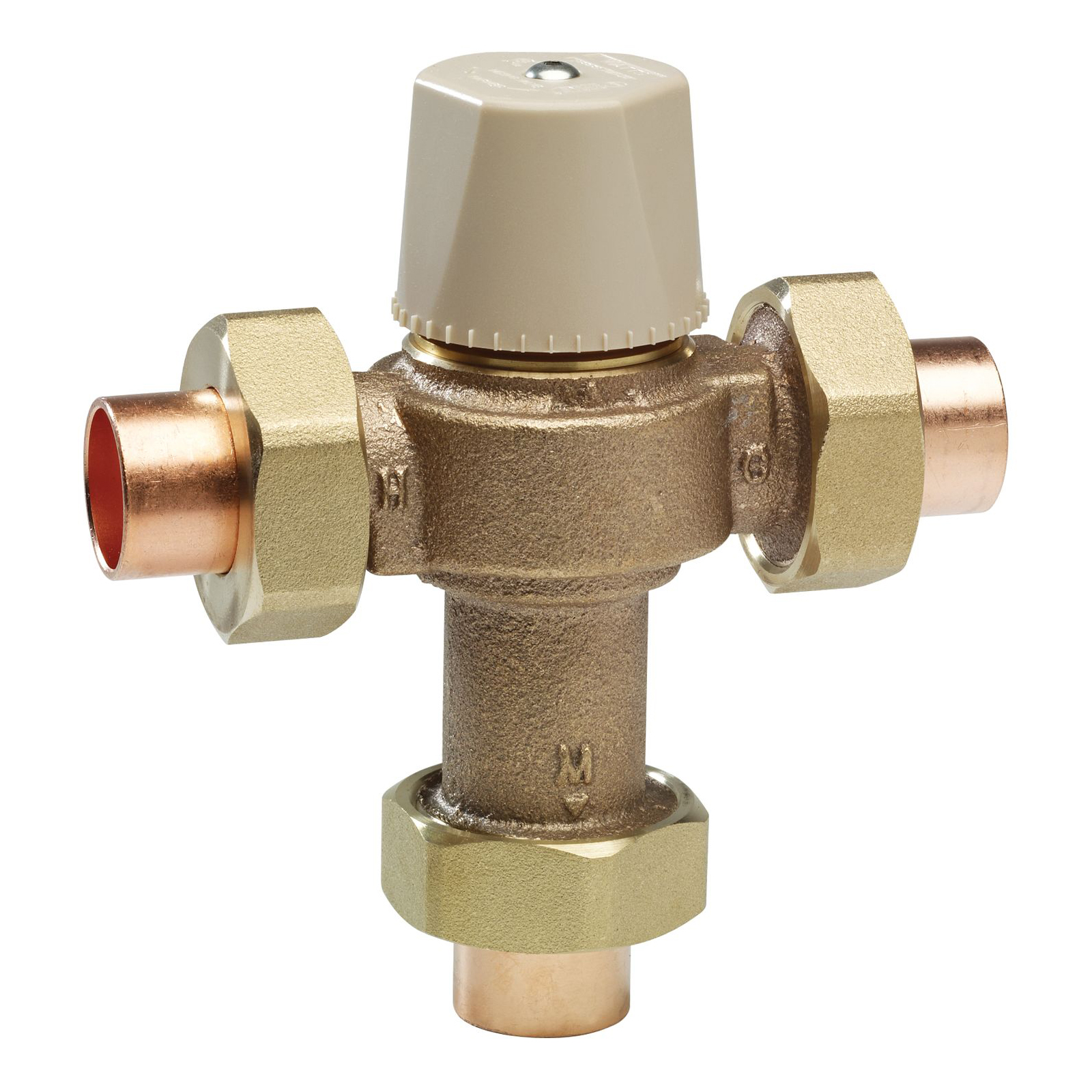

WATTS® 0559118 LFMMV Thermostatic Mixing Valve, 3/4 in Nominal, Solder End Style, 150 psi Pressure, 0.5 to 20 gpm Flow, Copper Silicon Alloy Body, Domestic
WALFMMVM1USI
MFG #: 0559118
- Country of Origin: US
- Domestic/Import: Domestic
- End Style: Solder
- Flow Capacity: 0.5 to 20 gpm
- Manufacturer Name: Watts Water Technologies
- Media: Hot/Cold Water
- Nominal Size: 3/4 in
- Pressure Rating: 150 psi
- Series: LFMMV, LFMMVM1-US
- Softgoods Material: Buna-N®/EPDM O-Ring
Series LFMMV Thermostatic Mixing Valves maintain and limit mixed hot water to a desired, selectable temperature. The LFMMV series can be set to any temperature between 80 deg F and 120 deg F with flow rates as low as 0.5 gpm and as high as 12 gpm (refer to capacity chart on back). This mixing valve series is listed under ASSE 1017 for valves used in hot water source applications, ASSE 1069 for single-pipe, tempered water applications and ASSE 1070 for valves used in individual or multiple fixture applications and also listed IAPMO cUPC. The LFMMVs feature Lead Free construction to comply with Lead Free installation requirements. The LFMMV-M1 uses a double throttling design to control both the hot and cold water supply to the mixed outlet. The superior flow characteristics of this valve provide accurate temperature control (+/-3 deg F) with low pressure drop across the rated flow range. As an added feature, the LFMMV-M1 series incorporates integral inlet filter washers and check valves in both the hot and cold water inlets to protect against cross flow. The LFMMV-M1 is available with either union thread (-UT), union solder (-US), CPVC (-CPVC ) Quick-Connect (-QC) or PEX (-PEX) end connectors. Maximum Pressure: 150psi (10.55 bar).
- Features and More
Features
- Thermal actuation technology for precise temperature control
- Locking mechanism secures temperature setting
- Adjustment cap with locking feature
- Integral filter washers and check valves
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
Application
- Commercial
- Residential and Institutional
Standards/Approvals/Certifications
- ASSE 1017/1069/1070 Listed
- IAPMO cUPC Listed
- PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Warranty
- 1 year Limited
