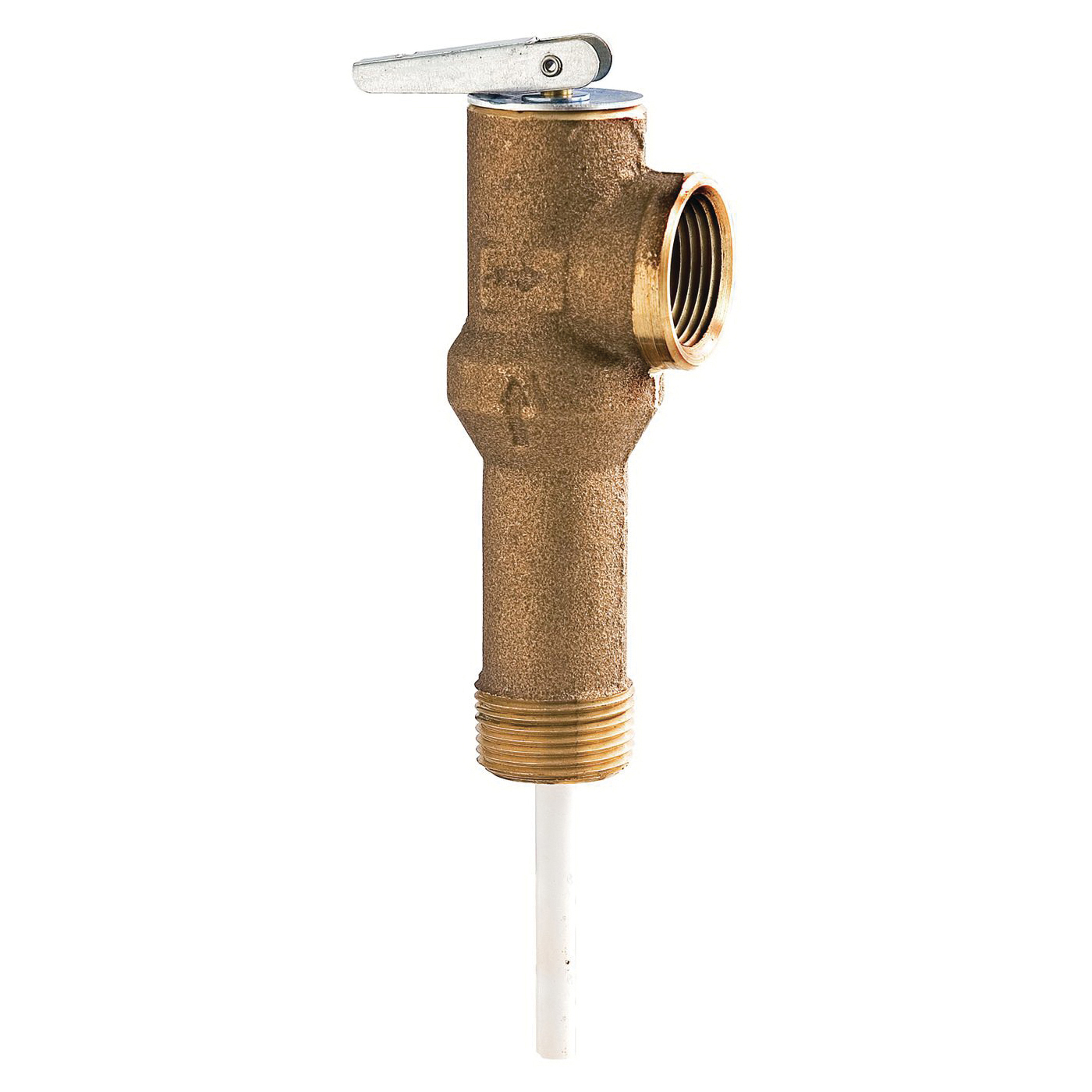

WATTS® 0066132 LL100XL Self Closing Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 210 deg F, 2-1/2 in L Probe, Bronze Body

WA100XL2.5 MFG #: LL100XL-2.5
WATTS® 0066132 LL100XL Self Closing Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 210 deg F, 2-1/2 in L Probe, Bronze Body
  • Actuator Type: Test Lever
  • Body Material: Bronze
  • Country of Origin: US
  • Dimensions: 1-7/8 in W
  • End Style: MNPT x FNPT
  • Manufacturer Name: Watts Water Technologies
  • Nominal Size: 3/4 in
  • Pressure Rating: 150 psi
  • Probe Length: 2-1/2 in
  • Series: LL100XL
  • Trim Material: Stainless Steel
  • Type: Self Closing
This 3/4 in extra extended shank temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105000 Btu/hr. It features an extended shank for installation on water heaters with extra thick insulation as well as a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. It is suitable for water heaters with up to 2-1/2 in of insulation. It is ASME rated and CSA listed. The temperature relief is 210 deg F, the pressure relief range is 75 to 150 psi and the standard pressure setting is 150 psi.
  • Features and More

Features

  • Brass body construction
  • Extended inlet shank, suitable for water heaters with up to 2-1/2 in insulation
  • Unique thermostat with special thermo-bonded coating
  • Thermostat is accurate and proven
  • Self closing safety valve for hot water heaters
  • Used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr

Application

  • Water Heater Applications

Standards/Approvals/Certifications

  • ASME Specified
  • ANSI Z21.22
  • CSA Certified
  • PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Warranty

  • Limited
