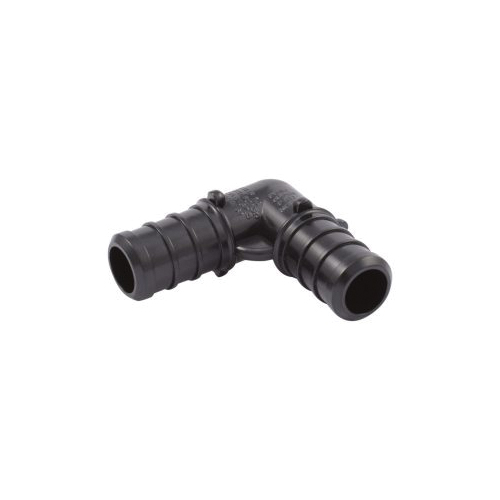

Sharkbite® UP248 90 deg Elbow, 1/2 in Nominal, PEX Barb End Style, Poly-Alloy, Import
Part #: VANXRE33
MFG #: 43220
The SharkBite® PEX Poly Alloy Barb Elbow is an easy to install, low-cost solution to connect to PEX tubing at a 90 deg angle. The SharkBite® PEX Poly Alloy Barb fittings are compatible for potable water distribution and hydronic heating applications. These fittings can be used in both a stainless steel clamp system, or a copper crimp ring system as well (each sold separately).
Brand : Sharkbite®
Country of Origin : TW
Domestic/Import : Import
End Style : PEX Barb
Fitting/Connector Type : 90 deg Elbow
Manufacturer Name : Reliance Worldwide Corporation
Features
- Advanced polymer solution for when corrosion may affect DZR brass products
- Can be used with either SharkBite® clamp rings or SharkBite® crimp rings
- Broad line of fittings, manifolds, regulator, thermostatic and ball valves: A typical barb system offers the lowest material cost
- Clamp ring connections: The time saving clamp rings and tool offer reduced equipment cost, one tool clamps all sizes and the necessity to check each fitting ring with a go/no-go gauge is eliminated
- Crimp ring connections: Copper crimp rings and the heavy duty tool with interchangeable jaws, does not require calibration and allows each joint to be checked with a go/no-go gauge
- ASTM F2159 specification for plastic insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing and SDR9 polyethylene of raised temperature (PE-RT) tubing
Application
- Plumbing
Standards/Approvals/Certifications
- ASTM F2159
- ANSI/NSF 61
- NSF 372
