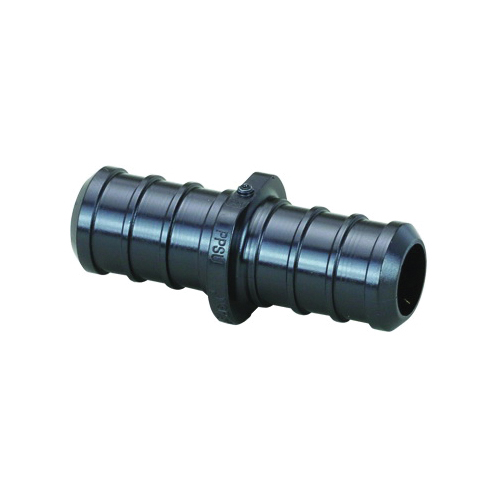

Viega PureFlow® 43404 Model V5215 Coupling, 3/4 in Nominal, PEX Crimp™ End Style, Poly-Alloy, Domestic

VANXRC44 MFG #: 43404

Country of Origin: US
Domestic/Import: Domestic
End Style: PEX Crimp™
Fitting/Connector Type: Coupling
Manufacturer Name: Viega
Material: Poly-Alloy
Nominal Size: 3/4 in
Pressure Rating: 100 psi
Series: Model V5215
Temperature Rating: 180 deg F

This product specification designates the requirements for Viega PureFlow® Crimp Zero Lead metallic fittings and copper crimp rings to be used as connections for Viega PureFlow® PEX tubing in 3/8 in, 1/2 in, 3/4 in and 1 in sizes. The connections are assembled with a full-circle crimp tool designed specifically for that purpose.

Features and More

Features

PureFlow® Crimp™ high-performance PolyAlloy fittings are manufactured from a performance grade polymer Acudel® or Radel-R®
PureFlow® Crimp™ PolyAlloy fittings exhibit excellent resistance to the corrosive effects of water and are well suited for hot water applications
PureFlow® Crimp™ PolyAlloy fittings are corrosion and impact resistant
ASTM F876 specification for crosslinked polyethylene (PEX) tubing
ASTM F2159 specification for plastic insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing and SDR9 polyethylene of raised temperature (PE-RT) tubing

Application

Potable Water Distribution System

Standards/Approvals/Certifications

ASTM F876/F2159
CSA B137.5
ICC ES-PMG™ 1038
NSF 14/61

Warranty

25 Years Limited
