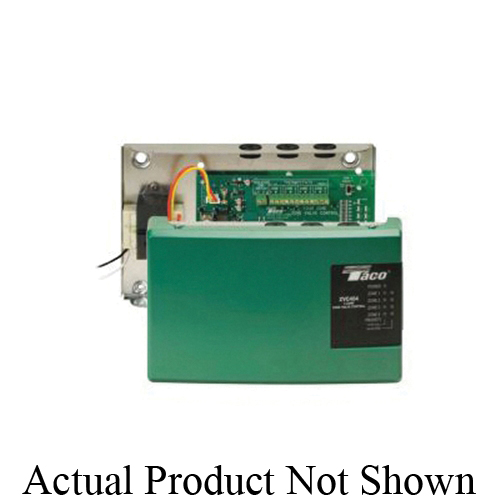

Taco® ZVC404-4 ZVC Zone Valve Control, 4 Zones, 120 VAC, 1/6 hp Power Rating, DPDT Contact, Domestic
TAZVC404
MFG #: ZVC404-4
- Contact Form: DPDT
- Country of Origin: US
- Depth: 2-3/4 in
- Domestic/Import: Domestic
- Height: 7 in
- Manufacturer Name: Taco
- Number of Zones: 4
- Series: ZVC
- Suitable For Use With: System Pump
- Type: 4 Zone with Priority
- Voltage Rating: 120 VAC
- Width: 10-3/4 in
- Features and More
Features
- Operation/external diagnostics - when any thermostat calls for heat, the appropriate zone valve is energized and the yellow light goes on
- When the zone valve is fully open, the red light goes on and energizes the end switch relay
- The green light should always be on, indicating that power is connected
- Priority operation - when zone 4 is switched to the priority setting and is actuated, all other zones will stop operation until zone 4 is satisfied
- When a circulator is used on the priority zone instead of a zone valve, jumper 3 and 4 of the priority zone
- Priority protection operation - when the priority zone calls continuously for more than one hour, power is returned to all the other zones, allowing each zone to function independently
- Once the priority zone is satisfied, the control's auto-reset is activated and the priority zone is again allowed to have priority for up to one hour starting from when it calls next
- External Indicator Lights
- Switchable Priority
- Simplified Wiring
- Works with 2, 3, or 4-Wire Zone Valves
- Compact Design
- Fuse Protected
- 100% Factory Tested
- Two Isolated End Switches
- Extra Set of Dry Contacts
- Contractor friendly PC Board Layout
- Universal Thermostat Compatibility
- Sturdy Screw Connections
Application
- For Zoning
Includes
- Instruction Sheet
Standards/Approvals/Certifications
- CSA Approved
- UL Listed
Warranty
- 3 Years
