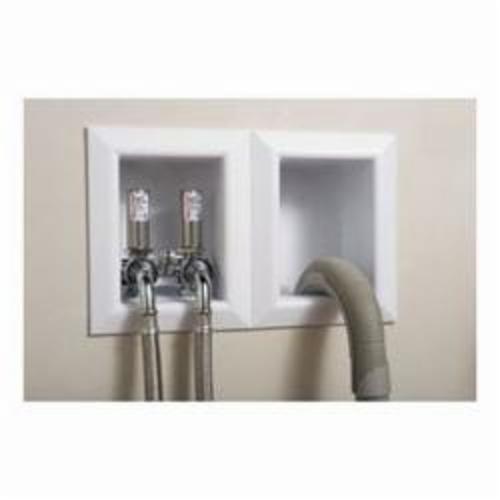

Sioux Chief OxBox™ 696-2313WF Outlet Box With (2) MiniRester™ Water Hammer Arresters and Plain Valve, 1/2 in PEX F1960 Inlet, 3/4 in Male Hose Thread Outlet, ABS, Domestic

SIOUX6962313WF MFG #: 696-2313WF
  • Country of Origin: CN, US
  • Dimensions: 7-1/4 in H x 11-1/2 in W
  • Domestic/Import: Domestic
  • Inlet Size: 1/2 in
  • Inlet Type: F1960 PEX Grip™, PEX F1960
  • Manufacturer Name: Sioux Chief
  • Material: ABS
  • Outlet Size: 3/4 in
  • Outlet Type: Male Hose Thread
  • Pressure Rating: 250 psig
  • Series: 696
Sioux Chief 696 series OxBox™ double hose bib outlet connection outlet box with drain box shall be used where necessary in plumbing supply/drainage systems. Unit shall allow for mounting with supply lines from top or bottom, on-stud or between-studs. Unit shall be available with plain valves or valves with water hammer arresters. Arresters shall be certified to ASSE 1010 and shall be UPC listed. Metal support bracket shall install into top tracks of boxes for between stud configuration. Metal clip shall be installed on side slots of box in desired configuration. Drain box shall have a 5/8 in integral testable nipple on knockout. Outlet connections shall be generally 3/4 in.
  • Features and More

Features

  • Boxes mount securely to stud or over studs
  • Separates supply and drainage systems into two stud bays
  • Separate boxes offer flexible layout
  • Durable ABS stands up to jobsite abuse
  • Drain knockout is easy to remove with pliers
  • Debris covers included to protect boxes from drywall mud and paint
  • High quality quarter-turn ball valve
  • ABS Frame, galvanized steel bracket, galvanized steel box clip, type L copper tube arrester body, piston made of polypropylene with two EPDM o-rings, piston lubrication made of dow-corning and 111 FDA approved silicone compound, chrome-plated forged brass valve body
  • 100 psi max testing air pressure
  • Without hose
  • Standard pack (supply box, frame, bracket, debris cover)
  • https://www.youtube.com/watch?v=sk0OrhcYyWo

Includes

  • (2) MiniRester™ Water Hammer Arresters and Plain Valve

Standards/Approvals/Certifications

  • ASME A112.18.1
  • IPC Certified
  • IAPMO Listed
  • NSF-61
  • UPC Certified
