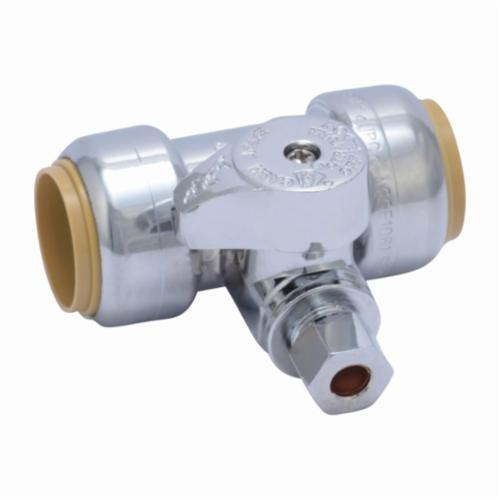

Sharkbite® 24985 1/4 Turn Tee Stop, 3/4 x 3/4 x 1/4 in Nominal, SB x SB x Compression End Style, 200 psi Pressure, Brass Body, Import
SHARKADDTI
MFG #: UR24985
- Body Material: Brass
- Country of Origin: CN
- Dimensions: 3.61 in L
- Domestic/Import: Import
- End Style: SB x SB x Compression
- Manufacturer Name: Reliance Worldwide Corporation
- Media: Water
- Nominal Size: 3/4 x 3/4 x 1/4 in
- Pressure Rating: 200 psi
- Softgoods Material: EPDM
- Temperature Rating: 200 deg F
- Features and More
Features
- Instant push-fit connection for increased ease of use-no soldering, clamps, unions or glue required
- Fits copper tubing, CTS CPVC, PEX and PE-RT pipe-connects all four types in any combination
- Integral tube liner for PEX installations-means no loose components and ensures a secure, reliable connection
- Stainless steel grade 316 grab ring
- Veradel tube support liner
- EPDM O-ring
- https://youtu.be/JAzkVaWTV-s
Application
- Dishwasher
- Humidifiers and Ice Makers
Standards/Approvals/Certifications
- ASME A112.18.1
- ASSE 1061
- CSA B125.1
- NSF/ANSI 61
- NSF/ANSI 372/61
Warranty
- 2 years Limited
