  • NIBCO® Press System® NF99KD8 PC-FP600A-D-LF 2-Piece 1/4-Turn Ball Valve With Drain/Bleeder, 3/4 in Nominal, Press x Female Press End Style, Forged DZR Brass Body, Full Port, EPDM/PTFE Softgoods, Import
NIBCO®

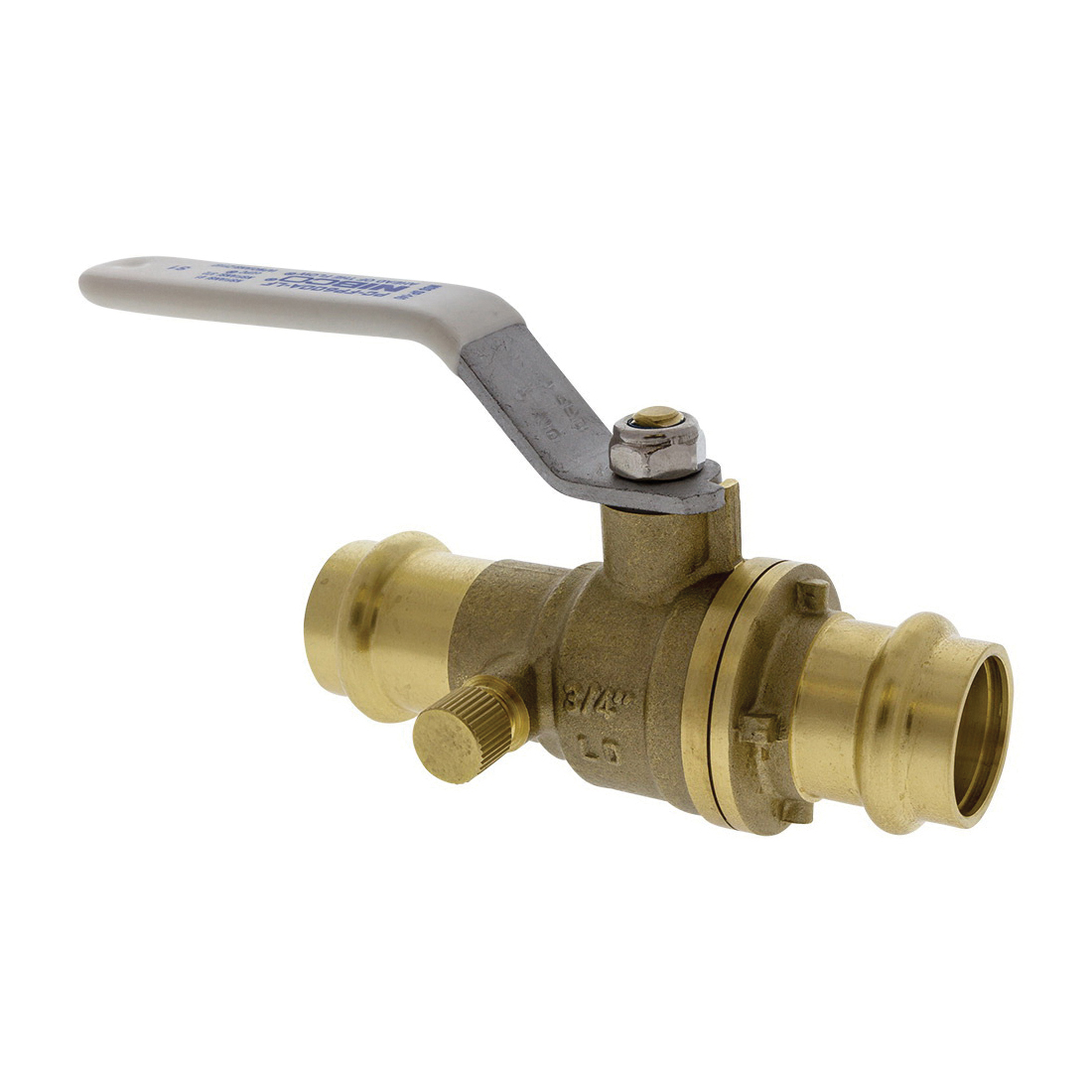

NIBCO® Press System® NF99KD8 PC-FP600A-D-LF 2-Piece 1/4-Turn Ball Valve With Drain/Bleeder, 3/4 in Nominal, Press x Female Press End Style, Forged DZR Brass Body, Full Port, EPDM/PTFE Softgoods, Import

PCFP600ADLFI
NIBCO 3/4" COPPER PRESS BALL BALVE LF W/DRAIN
  • Actuator Type: Standard Lever Handle
  • Ball Material: Polished Chrome Brass
  • Country of Origin: CN
  • Dimensions: 5.91 in L x 2.95 in W x 2.05 in H
  • Domestic/Import: Import
  • End Style: Female Press
  • Inlet to Outlet Length: 4.24 in
  • Manufacturer Name: NIBCO Inc.
  • Media: Hot and Cold Water
  • Nominal Size: 3/4 in, 3/4 Inch x 3/4 Inch
  • Orifice Size: 0.79 in
  • Port Type: Full
  • Pressure Rating: 250 psi CWP
  • Series: PC-FP600A-D-LF
  • Softgoods Material: EPDM/PTFE
  • Top to Inlet Center: 2.06 in
  • Trim Material: Brass/PTFE
  • Type: 2-Piece, 2-Piece 1/4-Turn
  • Applicable Standard: ASME B16.51, IAPMO/ANSI Z1157
  • Brand: NIBCO®
The NIBCO® Press System® is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. The lead-free Ball Valve is specifically designed for use in systems that deliver water for human consumption. Please refer to NIBCO® technical data sheets and catalogs for engineering and installation information. NIBCO® Press System® applies the proven performance of press technology to NIBCO® valves and fittings - the most specified flow control products in the industry. The NIBCO® Press System® features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO® is the preferred brand in the industry.
  • Features and More

Features

  • Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
  • Blowout-proof stem
  • Reinforced PTFE seat rings
  • Press leak-detection feature
  • Dezincification resistant
  • Not intended for gas use
  • Multiple handle options
  • Maximum service temperature 250 deg F
  • https://youtu.be/zWS2YcSY2-w

Application

  • For drinking water
  • domestic hot and cold water
  • HVAC (condensers
  • chilled water
  • hot water heating)
  • isolation and throttling (half-open to full-open only) and to connect to rigid copper tubing manufactured per ASTM B88
  • condition H (hard drawn)

Standards/Approvals/Certifications

  • ASTM D2000/C46500
  • cUPC Listed
  • IAPMO/ANSI Z1157
  • IGC 157
  • Low Lead Compliant
  • MSS SP-145
  • NSF/ANSI 61/372
  • PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Warranty

  • 2 years
