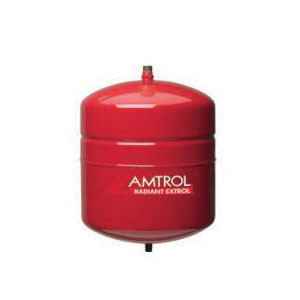

Amtrol® Radiant EXTROL® 140-705 RX Series Heating System Expansion Tank, 2 gal Capacity, 0.45 Acceptance, 0.9 gal Acceptance, 100 psi Pressure, Heavy Duty Butyl/EPDM Diaphragm, 8 in Dia x 13 in H

AM15RX MFG #: 140-705
  • Acceptance Capacity: 0.9 gal
  • Acceptance Factor: 0.45
  • Capacity: 2 gal
  • Country of Origin: US
  • Diameter: 8 in
  • Domestic/Import: Domestic
  • Finish: Urethane Topcoat
  • Height: 13 in
  • Manufacturer Name: Amtrol
  • Material: Steel
  • Pressure Rating: 100 psi
  • Series: RX Series
  • Temperature Rating: 200 deg F
  • Features and More

Features

  • Plastic lining is compatible with barrier and non-barrier tubing
  • Suitable for use in glycol applications
  • Automatic air vent eliminates system air
  • Air purger separates air from water
  • System connection sets the point of no pressure change
  • Water-tight reservoir for expanded water
  • Sealed air cushion-factory precharged and 100% tested
  • 12 psig factory precharged
  • Strong, deep-drawn steel tank
  • Projection welded air stem maintains precharge setting
  • 1/2 in NPTM steel system connection

Application

  • High-Efficiency Radiant Heating Systems

Standards/Approvals/Certifications

  • ISO 9001-2008

Warranty

  • 5 Years Limited
