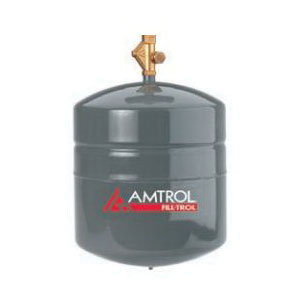

Amtrol® FILL-TROL® 109-1 FT Series Boiler System Expansion Tank, 2 gal Capacity, 0.5 Acceptance, 1 gal Acceptance, 100 psi Pressure, Heavy Duty Butyl/EPDM Diaphragm, 8 in Dia x 13 in H
AM109
MFG #: FT109
- Acceptance Capacity: 1 gal
- Acceptance Factor: 0.5
- Capacity: 2 gal
- Country of Origin: US
- Diameter: 8 in
- Domestic/Import: Domestic
- Finish: Urethane Topcoat
- Height: 13 in
- Manufacturer Name: Amtrol
- Material: Steel
- Pressure Rating: 100 psi
- Series: FT Series
Amtrol® FILL-TROL® Boiler System Expansion Tank, Series: FT Series, 2 gal, 8 in Dia, 13 in Height, 100 psi, Acceptance Factor: 0.5, 1 gal Acceptance Capacity, 240 deg F, Heavy Duty Butyl/EPDM Diaphragm, Steel, Urethane Topcoat, Domestic,
- Features and More
Features
- The AMTROL FILL-TROL® system consists of a specially adapted EXTROL® pre-pressurized, diaphragm-type expansion tank and the FILL-TROL, a specially designed, automatic, fill valve
- Accepts expanded water as system temperature rises to reduce pressure build-up
- Eliminates need for a separate, automatic fill valve
- Fully adjustable
- Helps reduce energy consumption and reduces system wear
- Automatic air vent eliminates system air
- Air purger separates air from water
- System connection sets the point of no pressure change
- Water-tight reservoir for expanded water
- Sealed air cushion-factory precharged and 100% tested
- 12 psig factory precharged
- Strong, deep-drawn steel tank
- Projection welded air stem maintains precharge setting
- Tank pressure controls system fill
- Spring-loaded check valve
- Automatic shut-off valve spring
- Removable strainer
- Cold water supply
- Expansion bypass
- Fill gate stem
Application
- For use in closed non-potable hydronic heating and chilled water systems and suitable in propylene glycol applications
Standards/Approvals/Certifications
- ISO 9001-2008
Warranty
- 5 Years Limited
